Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

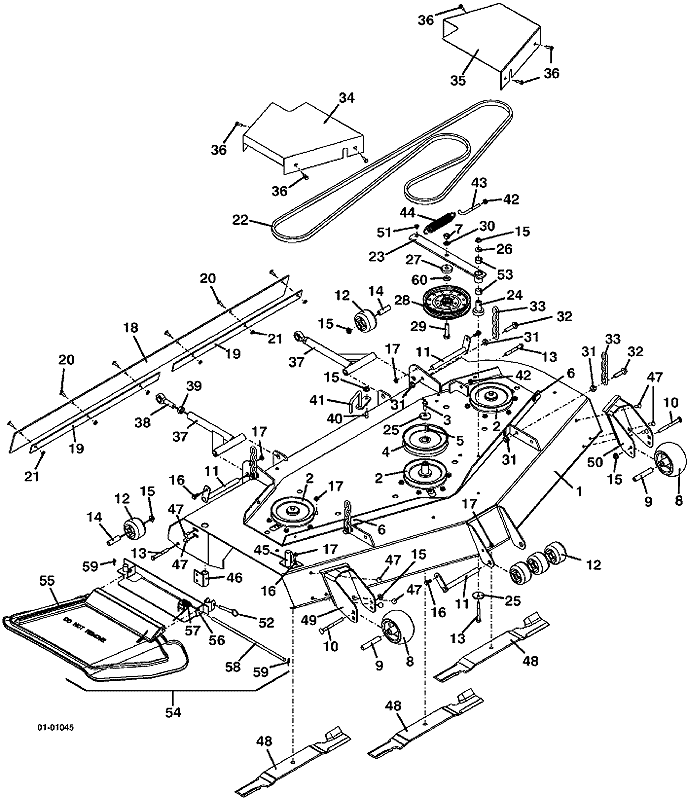

325 • Deck Assembly - M161

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M161 / 07 Deck Weldment

644160

2

Sheave

415892

3

Hex Bolt

243331

4

Sheave

415896

5

Square Key

281582

6

Speed Nut

254431

7

Nut

254470

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller

426122

13

Hex Bolt .375-16 x 3

243365

14

Roller Mount Spacer

902284

15

Whiz Nut .375-16

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 61 Deck Flap

424204

19

Deflector Strap 220S 61

774337

20

Truss Whiz Bolt

253177

21

Whiz Nut

253025

22

Belt

382085

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer

883804

28

Idler

393250

29

Hex Bolt

243580

30

Lock Washer

257432

31

Whiz Nut

253058

32

Hex Bolt GR 8

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield - Mid 61

722451

35

left Belt Shield Mid 61

722452

36

Hex Whiz Bolt

253175

37

Radius Arm Assembly - M1 300

604676

38

Rod End

265665

39

Nut

254493

40

Flange Whiz Bolt

253203

41

M1 Deck Belt Guide

644086

42

Nut

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Clevis Shaft

643235

46

Vac Housing Pivot Mount

643632

47

Carriage Bolt

247130

48

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" High Lift Notch Blade

320245

-

21" Extreme Hi-Lift Blade

320246

49

right Anti-Scalp Roller Mount

643842

50

left Anti-Scalp Roller Mount

643695

51

Speed Nut

254431

52

Hitch Pin

260400

53

Oilite Bearing

121756

54

Discharge Flex Shield Assembly

604749

55

Discharge Flex Shield

422042

56

Discharge Flex Shield Mount

644767

57

Torsion Spring

284406

58

Discharge Flex Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062
