Genuine OEM Grasshopper Lawn Mower Parts

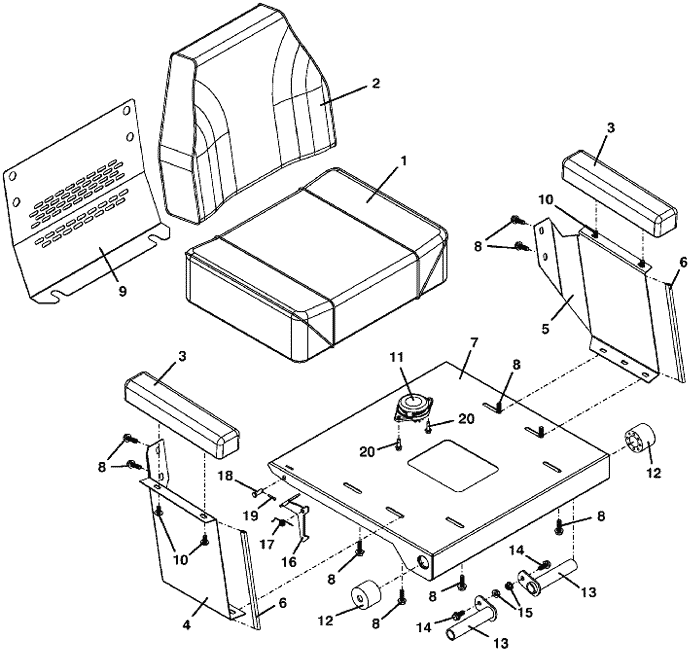

Genuine OEM Grasshopper® Mower Parts Diagrams

325 • Seat Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion - Cordura

321521

2

Back Cushion - Cordura

321519

3

Seat Armrest - Cordura

321522

4

Seat Side Member - right

724310

5

Seat Side Member - left

724311

6

Seat Edge Trim

822630

7

300S M1 Seat Platform

643931

8

Hex Flange Whiz Bolt

253193

9

Seat Reinforcement Panel

722388

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

724112

17

Torsion Spring

284408

18

Clevis Pin

261280

19

Cotter Pin

260648

20

Hex Whiz Bolt

253175

Return to 325 Index Return to Top
