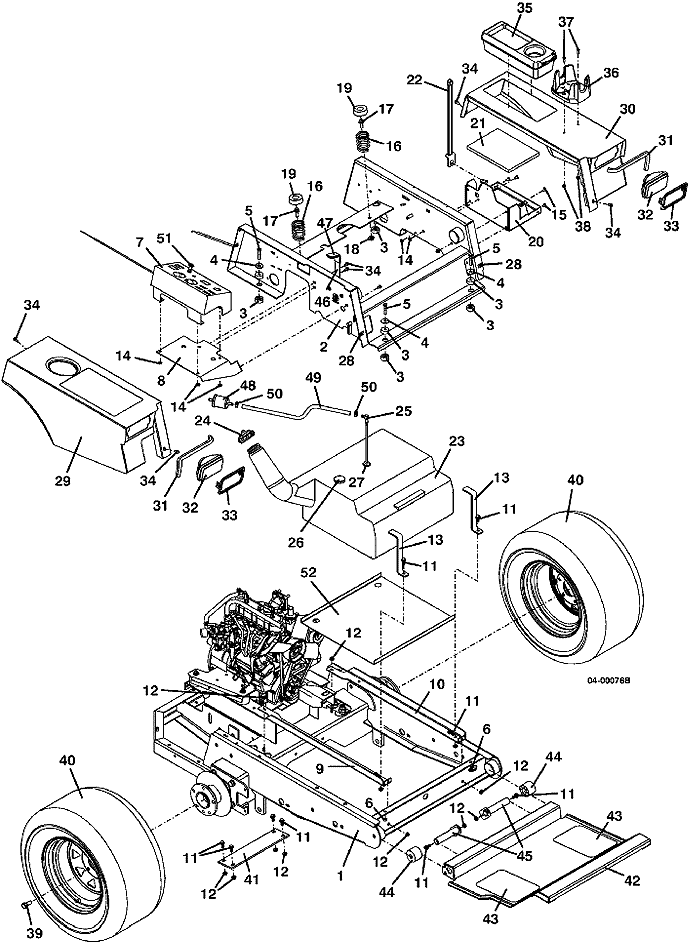

325 • Tractor Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Kubota Lower Frame

644247

2

M1 Kubota Upper Frame

644248

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

300S M1 Console

644139

8

300/400 Console Mount

644141

9

Tank Rail - right 300S

754068

10

Tank Rail - left 300S

754069

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Tank Front Bracket

723091

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1 Kubota Gas Tank Assembly

604802

24

Fuel Tank Cap

100210

25

Fuel Draw Tube

101815

26

8.5 gallon In-Tank Fuel Gauge

141140

-

Grommet

424275

27

Grommet

101875

28

Speed Nut

254431

29

M1 Kubota Fender - right

644265

30

M1 Kubota Fender - left

644266

31

700 / 900 Fender Edge Trim

822635

32

Worklamp (Flood)

182253

33

Snap-Mount Worklamp Bezel

182251

34

Hex Whiz Bolt

253173

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire 24 x 12 x 12

483965

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Tire 23 x 10.5 x 12

483960

-

12" Wheel & Bar Tread Tire (right)

483968

-

12" Wheel & Bar Tread Tire (left)

483969

41

Belt Guard Strap

783277

42

LC M1-52/61 Footrest

644269

-

M1 On-Frame Foot Rest

644256

43

Foot Rest Tread

420905

-

Foot Rest Tread

420902

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle Assembly - 325

604827

-

Throttle Control Cable

323636

-

Throttle Lever Stop

722009

47

Handle Grip

422150

48

Kubota Fuel Prefilter

101005

49

Fuel Line Hose 300S

821717

50

Screw Type Hose Clamp

280270

51

Mechanical Choke

142218

52

M1 Tank Shield

722495

53

300 right Hydro Debris Shield

723050

54

300 left Hydro Debris Shield

723051

55

325 Decal Set

604306

Return to 325 Index Return to Top
