Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

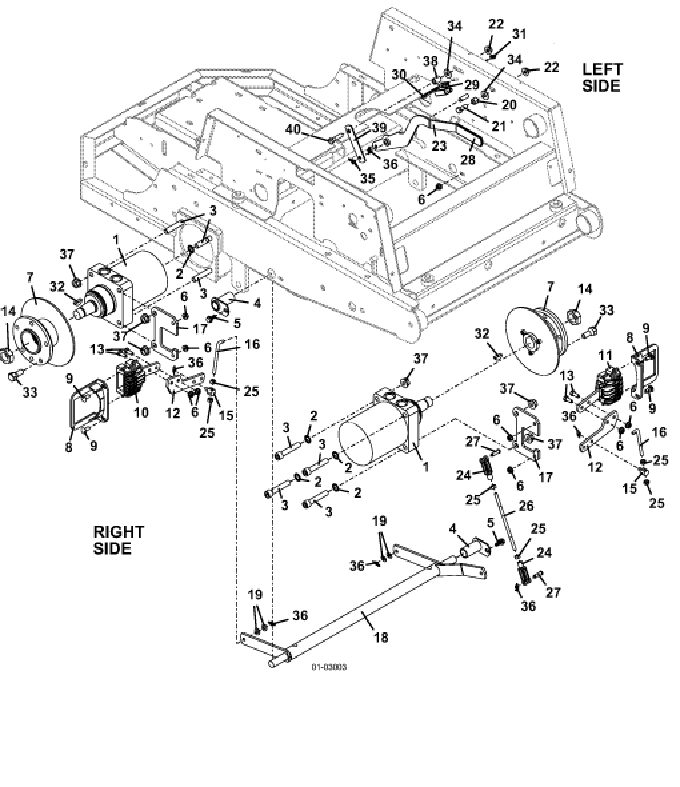

325 • Wheel Motor and Brake Assembly

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603602

2

Internal Star Washer

257430

3

Socket Head Screw

259640

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

-

Socket Head Screw

259592

-

8.0 Brake Rotor-

775192

8

M1/G2 Caliper Mount

644121

9

Carriage Bolt

247130

10

Brake Caliper Assembly (Counter-ClockWise)

481103

-

Brake Pad Kit

603150

11

Brake Caliper Assembly (ClockWise)

481102

-

Brake Pad Kit

603150

12

M1 Caliper Brake Arm

776056

13

Hex Bolt

253195

14

Nut

254522

15

Brake Linkage Pin

880926

16

M1 Brake Linkage Rod

730158

17

Rotor Brake Mount

776174

18

Brake Tube - 300

644173

19

Washer

257032

20

Spacer

902280

21

Hex Bolt

243330

22

Whiz Nut

253043

23

Brake Lever

644447

24

Clevis Yoke

265537

25

Nut

254441

26

Linkage Rod

780157

27

Clevis Pin

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut

253020

32

Woodruff Key

281860

33

Lug Bolt for 61" and 72"

248565

-

Lug Bolt for 52"

248568

34

Washer

257040

35

Cotter Ring

260608

36

Cotter Ring

260606

37

Flanged Nut Spiral Lock

253067

38

Spacer

902283

39

M1 Rienforcement Pin

774145

40

Hex Bolt

243340
