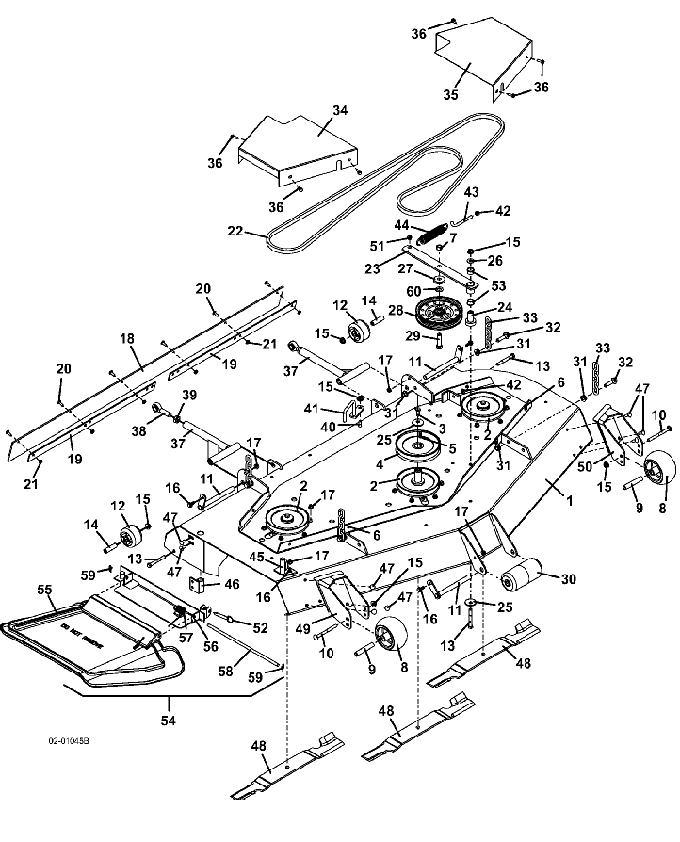

Genuine OEM Grasshopper® Mower Parts Diagrams
325A • M161 Deck
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M161 Deck with Bolt-On Rollers |
644160 |
2 |
Sheave |
415892 |
3 |
Hex Bolt .375-24 x 1 |
243331 |
4 |
Sheave |
415896 |
5 |
Square Key .250 x .875 |
281582 |
6 |
Speed Nut .250-20 |
254431 |
7 |
Spiral Lock Flanged Nut |
253067 |
8 |
Anti-Scalp Wheel Center Hub 5 x 2.75 |
484230 |
9 |
Bearing Tube |
942137 |
10 |
Carriage Bolt |
247310 |
11 |
Roller Lock Pin |
644512 |
12 |
Roller 3 x 2" |
426122 |
13 |
Hex Bolt .375-16 x 3 |
243365 |
14 |
Roller Mount Spacer |
902284 |
15 |
Whiz Nut .375-16 |
253043 |
16 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
17 |
Whiz Nut |
253035 |
18 |
M1 61" Deck Flap |
424204 |
19 |
220S 61" Deflector Strap |
774337 |
20 |
Truss Whiz Bolt .250-20 x .750 |
253177 |
21 |
Whiz Nut .250-20 |
253025 |
22 |
Belt |
382085 |
23 |
M1 52/61 Idler Arm with Bearings (includes item 24) |
824488 |
24 |
Pedestal Bearing .750 x 1.5 |
121650 |
25 |
Cupped Washer |
257041 |
26 |
Washer |
257040 |
27 |
Retainer Washer .531 x 1.625 |
883804 |
28 |
Idler |
393250 |
29 |
Hex Bolt |
243575 |
30 |
2 Piece Center Roller Assembly |
603725 |
31 |
Whiz Nut |
253058 |
32 |
Flange Bolt .437-14 x 1.75 GR 8 |
243458 |
33 |
Chain - 5 Links M1 |
820331 |
34 |
right Belt Shield Mid 61 |
722451 |
35 |
left Belt Shield Mid 61 |
722452 |
36 |
Hex Bolt .25-20 x .75 |
253175 |
37 |
M1 300 Radius Arm Assembly |
604676 |
38 |
Rod End |
265665 |
39 |
Nut .625-18 |
254493 |
40 |
Flange Whiz Bolt .375-16 x 1 |
253203 |
41 |
M1 Deck Belt Guide |
644086 |
42 |
Nut .375-16 |
254450 |
43 |
Idler Adjustment J Bolt |
730391 |
44 |
Extension Spring |
283848 |
45 |
Shaft - Clevis |
643235 |
46 |
Pivot Mount |
643632 |
47 |
Carriage Bolt .312 x .75 |
247130 |
48 |
High Lift Notch Blade - 21" |
320245 |
- |
Medium Lift Blade - 21" |
320242 |
- |
Contour Blade - 21" |
320244 |
- |
Extreme High Lift Blade - 21" |
320246 |
49 |
right Anti-Scalp Roller Mount |
643842 |
50 |
left Anti-Scalp Roller Mount |
643695 |
51 |
Nylon Bearing |
422520 |
52 |
Hitch Pin .375 x 2 |
260400 |
53 |
Oilite Bearing .754 x .878 x .50 |
121756 |
54 |
Discharge Shield Assembly |
604749 |
55 |
Discharge Shield |
422042 |
56 |
Discharge Shield Mount |
644767 |
57 |
Torsion Spring |
284406 |
58 |
Pin |
780650 |
59 |
Cotter Ring |
260608 |
60 |
Washer |
257062 |
