Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

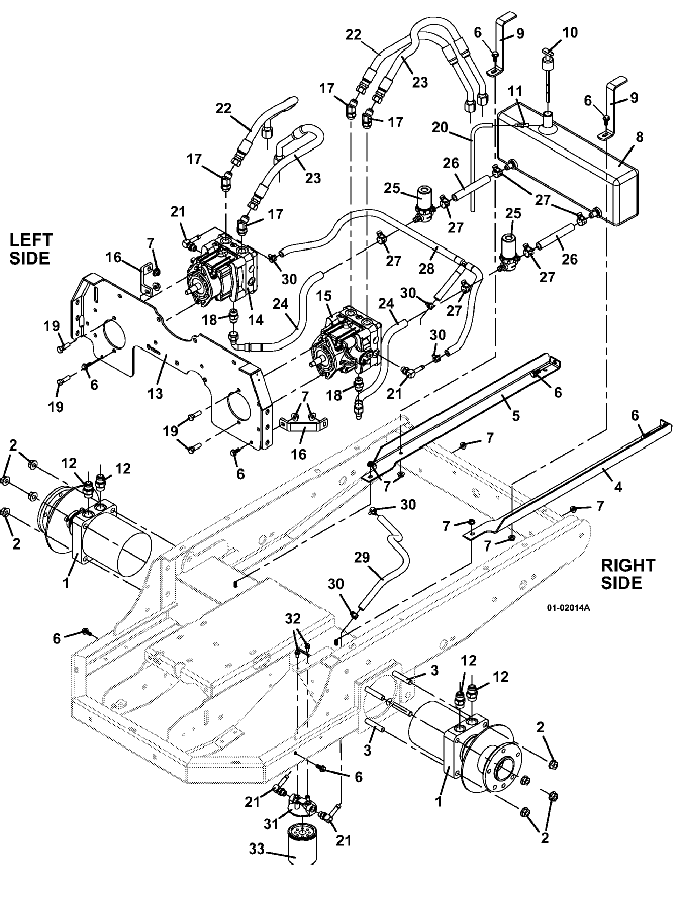

325A • Reservoir & Hose Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603602

2

Whiz Nut

253066

3

Socket Head Screw

259640

-

Internal Star Washer

257430

4

300S Right Tank Rail

754068

5

300S Left Tank Rail

754069

6

Hex Flange Whiz Bolt

253192

7

Whiz Nut

253035

8

M1 300/400 Oil Reservoir Assembly

603606

-

Fuel Tube Bushing

101875

-

Grommet

101880

-

Straight Fitting

360058

-

90 Degree Fitting

363638

9

M1 Oil Tank Strap

723557

10

M1 Oil Reservoir Dipstick

100728

11

Straight Barbed Fitting

363826

12

Adapter O Ring

360069

-

O Ring

126529

-

O Ring

126537

13

Pump Plate

644619

14

Left Hydro Pump

391462

15

Right Hydro Pump

391463

16

Pump Plate Reinforcement Strap

732882

17

Adapter Fitting

360046

-

O Ring

126527

-

O Ring

126535

18

O Ring Boss Fitting

363832

19

Hex Bolt

243335

20

Clear Vent Hose

821724

21

Adapter

360056

22

Hose Assembly

424375

23

Hose Assembly

424377

24

Hose Assembly

424321

25

In-Line Strainer

366553

26

Hydraulic Hose

821793

27

Spring Hose Clamp

280265

28

Hose Assembly

424317

29

Hydraulic Hose

821787

30

Hose Spring Clamp

280263

31

M1 Series Filter Base

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855
