Genuine OEM Grasshopper® Mower Parts Diagrams

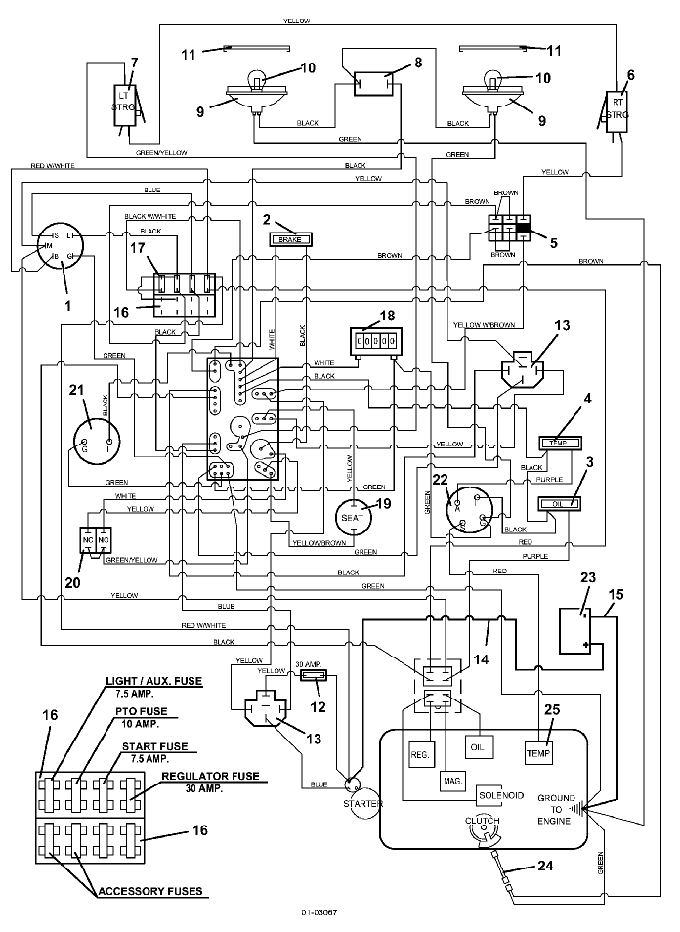

325A • Electrical Wiring, Lights, & Switches
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Briggs & Stratton / Kohler Ignition Switch with Key |
183806 |
- |
Key Ignition With Cover |
101101 |
- |
Nut .625-32 |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Light Indicator |
182327 |
4 |
Temperature Light Indicator |
182328 |
5 |
Push/Pull Switch |
183925 |
6 |
Lever Switch |
183860 |
- |
right Steering Switch Mount |
720160 |
7 |
Lever Switch |
183860 |
- |
left Steering Switch Mount |
720161 |
8 |
Rocker Switch |
184179 |
9 |
Worklamp - Flood (includes bulb) |
182253 |
10 |
Bulb for Worklamp |
182005 |
11 |
Snap Mount Bezel for Worklamp |
182251 |
12 |
Inline Auto Fuse Holder |
181735 |
- |
Auto ATC - 30 Fuse |
181470 |
13 |
12 volt DC Relay with Mount |
184271 |
- |
Type 1 6MM Pushon |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
14 |
42" Red Battery Cable |
180340 |
- |
Starter Terminal Boot |
425219 |
15 |
39" Black Battery Cable |
180295 |
16 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Clip Fuse Clip |
184472 |
17 |
Auto ATC - 30 Fuse |
181470 |
- |
Auto ATC - 7.50 Fuse |
181460 |
- |
Auto ATC - 10 Fuse |
181462 |
18 |
Snap-In Hour Meter |
141551 |
19 |
Seat Switch |
183870 |
20 |
Brake Interlock Switch |
183894 |
21 |
Voltmeter Guage |
141200 |
22 |
Zoned Electric Temperature Guage |
141160 |
23 |
12V DC Battery (Wet) |
180125 |
- |
12V DC Battery (Dry) |
180126 |
- |
Hex Bolt |
243309 |
- |
Battery Hold Down Strap |
604785 |
- |
Battery Box for 220/225/227 |
644090 |
24 |
Pigtail Cable Assembly |
388840 |
25 |
Temperature Sender |
141218 |
26 |
Wiring Assembly 325A |
604982 |
27 |
325A Console Decal |
161144 |
