Genuine OEM Grasshopper® Mower Parts Diagrams

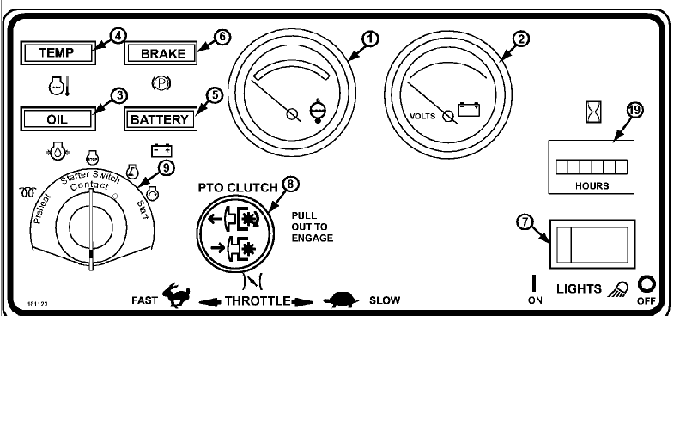

325D • Console
2010½
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Temp Zoned Electric Guage |
141160 |
2 |
Guage Voltmeter |
141200 |
3 |
Light Indicator - Oil |
182327 |
4 |
Light Indicator - Temp |
182328 |
5 |
Light Indicator - Battery |
182325 |
6 |
Light Indicator - Brake |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push/Pull Switch |
183925 |
9 |
Sealed Kubota Key Switch |
183827 |
19 |
Snap-in Hour Meter |
141551 |
20 |
Console Decal |
161123 |
