Genuine OEM Grasshopper® Mower Parts Diagrams

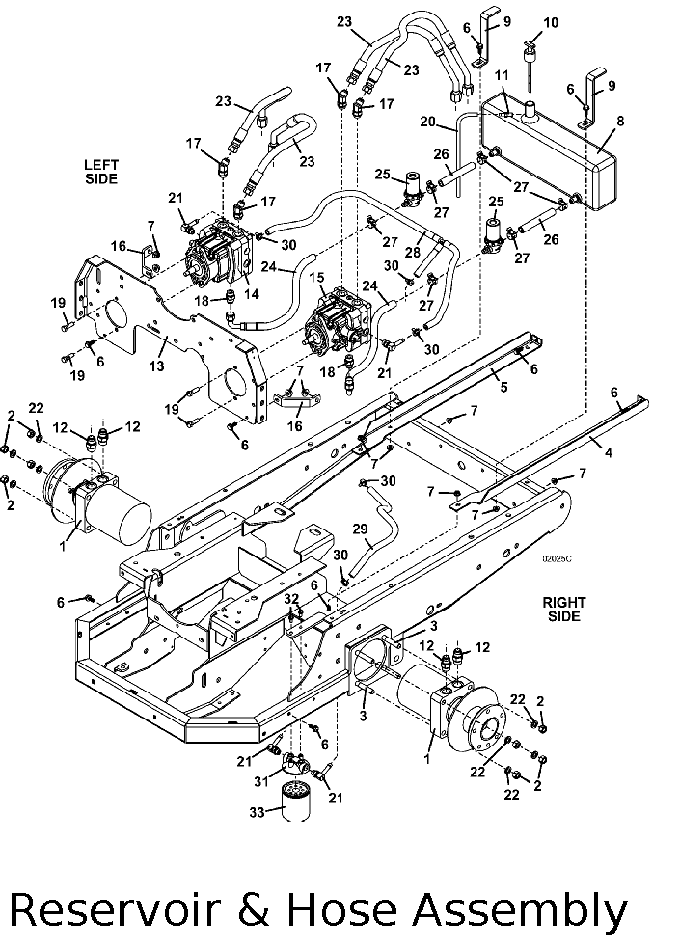

325D • Reservoir and Hose Assembly
2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Return to 325D 2010 Index
Return to Top
|
