Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

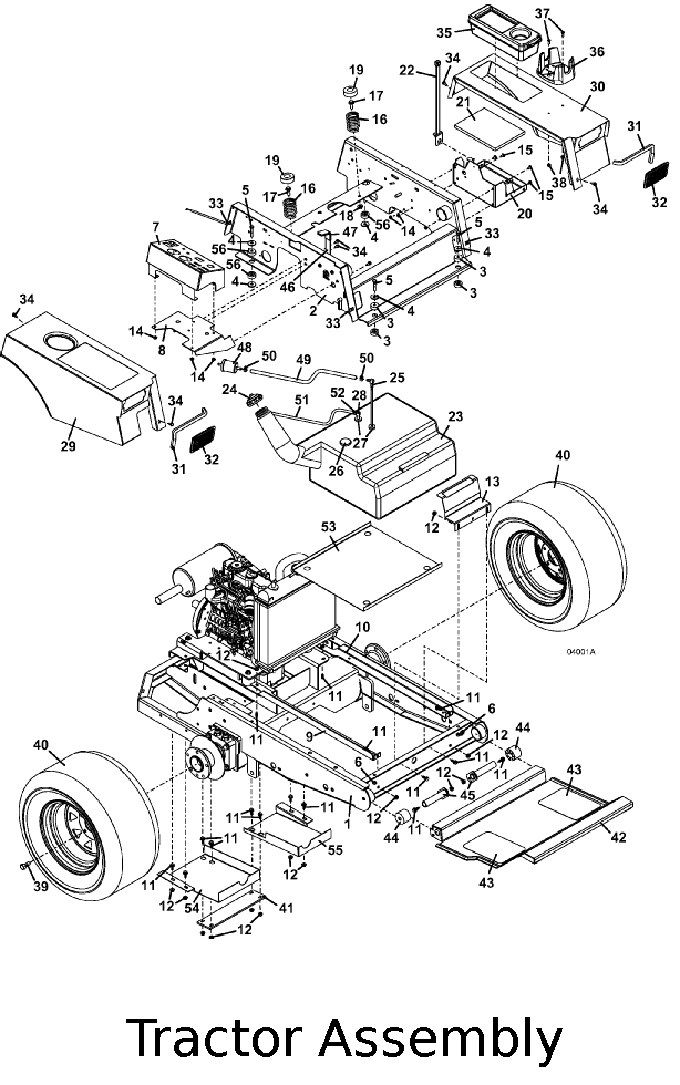

325D • Tractor Assembly

2010

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lower Frame 322D

644296

2

Upper Frame M1 300/400

644248

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

Console M1 300S

644139

8

Console Mount 300/400

644141

9

Right Tank Rail 300S

754068

10

Left Tank Rail 300S

754069

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Front Tank Bracket 300/400

723091

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

Diesel Tank Assembly M1

604801

24

Diesel Screw On Fuel Cap

100211

25

Fuel Tube

363922

26

8.5 gal. In-Tank Fuel Gauge

141140

-

Grommet - Fuel Gauge Mount

424275

27

Fuel Tube Bushing (Grommet)

101875

28

Fuel Tube

363920

29

Right Fender M1

644265

-

325D Right Trim Decal

163418

30

Left Fender M1

644266

-

325D Left Trim Decal

163419

31

Trim

822632

32

Work Lamp Hole Plug

422079

33

Speed Nut

254431

34

Hex Whiz Bolt

253173

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel and Tire Assembly Turf 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12

482487

-

Wheel Only 12 x 8.5 x 4.25

483440

-

Wheel &Tire Bar Tread (right) 24 x 12 x 12

483968

-

Wheel &Tire Bar Tread (left) 24 x 12 x 12

483969

41

Belt Guard Strap

783277

42

M1 On Frame Footrest

644256

43

Foot Rest Tread

420902

44

Seat Isolator

424095

45

Seat Pin Hinge

644618

46

Throttle Assembly 322D/722D

603858

-

Throttle Control Cable Assembly

323656

-

Throttle Stop Lever

722009

-

Heavy Duty Throttle Stop

722736

47

Handle Grip

422150

48

Kubota Fuel Prefilter

101005

49

Fuel Line Hose 300S

821717

50

Spring Hose Clamp

280261

51

Fuel Return Hose 300S

821741

52

Spring Hose Clamp

280257

53

M1 Tank Shield

722495

54

322 Right Hydro Debris Shield

723396

55

322 Left Hydro Debris Shield

723397

56

325D Decal Set

605346
