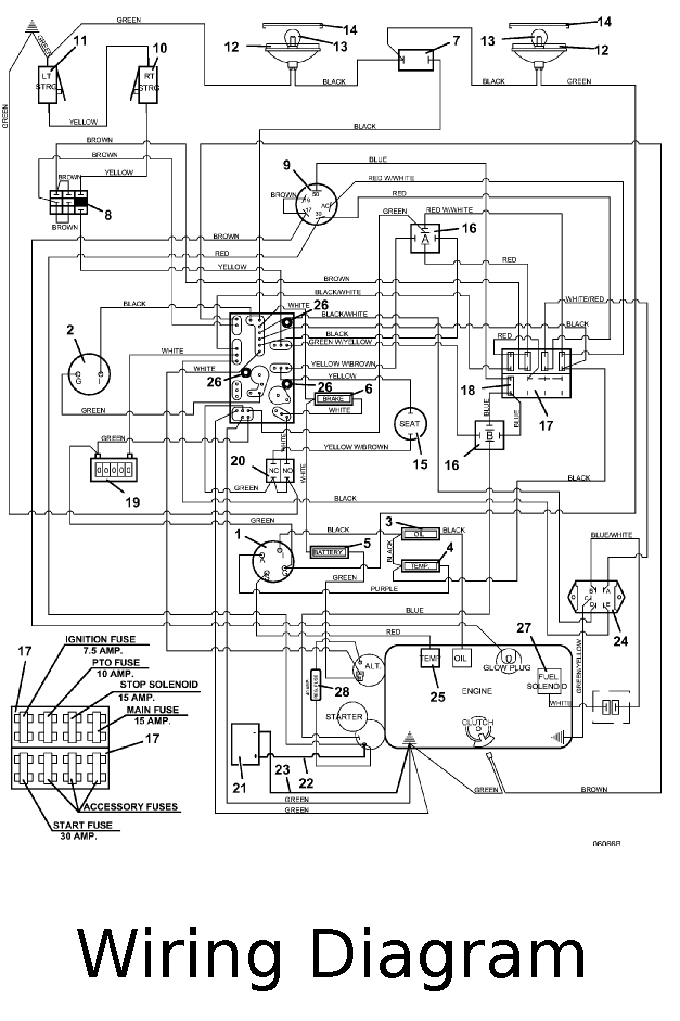

325D • Electrical Wiring
2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Temerature Zoned Electric Guage |
141160 |
2 |
Voltmeter Guage |
141200 |
3 |
Oil Light Indicator |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Batter Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push/Pull Switch |
183925 |
9 |
Sealed Kubota Key Switch |
183827 |
- |
Double Notch Kubota Ignition Key |
101106 |
10 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
11 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720161 |
12 |
Flood Worklamp |
182253 |
13 |
Worklamp Light Bulb |
182005 |
14 |
Snap-in Worklamp Light Bezel |
182251 |
15 |
Twist in Seat Switch |
183871 |
16 |
12 VDC Relay |
184272 |
- |
Type 1 6MM Push-on |
184570 |
- |
.250 Fast-on Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Clip Fuse Clip |
184472 |
18 |
30 Amp Fuse |
181470 |
- |
7.50 Amp Fuse |
181460 |
- |
10 Amp Fuse |
181462 |
- |
15 Amp Fuse |
181465 |
19 |
Snap In Hour Meter |
141551 |
20 |
Brake Interlock Switch |
183894 |
21 |
12V Wet Sidepost Battery |
180130 |
- |
12v Dry Sidepost Battery |
180131 |
- |
Hex Bolt |
243309 |
22 |
42" Red Battery Cable |
180340 |
- |
Red Alternator Terminal Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
23 |
39" Black Battery Cable |
180295 |
24 |
Switch Interlock Module D902 |
184217 |
25 |
Temperature Sender |
141222 |
26 |
PC Board Support Spacer |
423690 |
27 |
Fuel Valve Solenoid |
101046 |
28 |
Inline Regulator Fuse Holder |
604888 |
- |
40 Amp Fuse |
181475 |
29 |
Wiring Assembly 322D/325D |
605923 |
30 |
Console Decal |
161123 |
