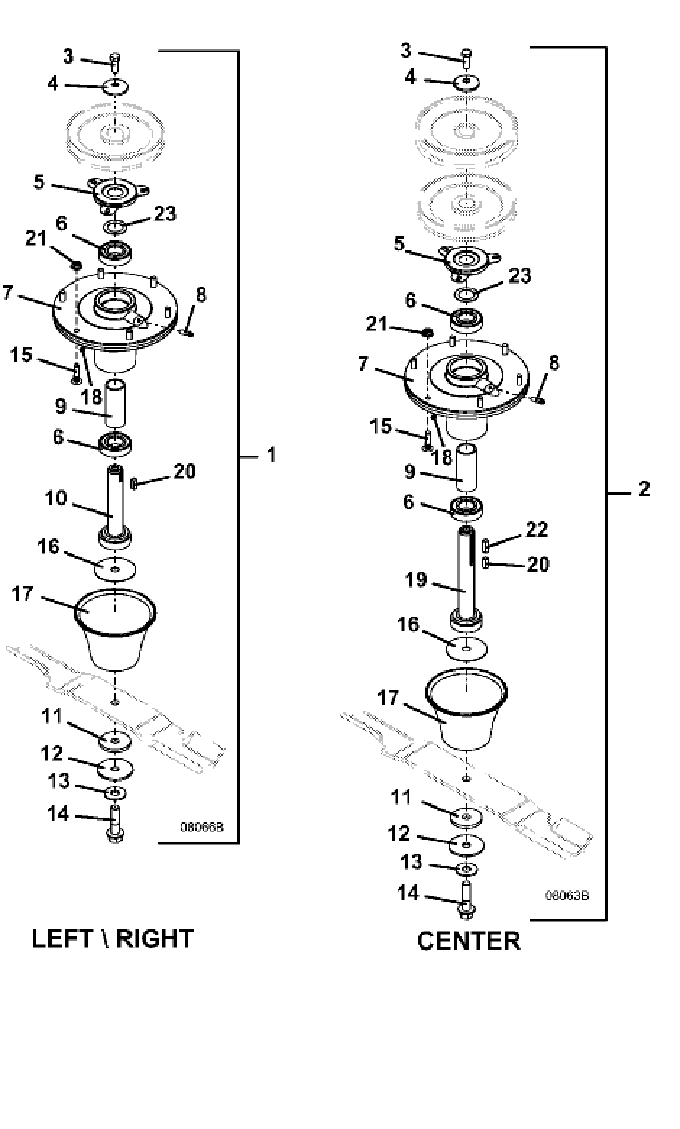

325D • Blade Spindle Assembly - M161
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Spindle Assembly, Left & Right
(includes items 3-18, and 23) |
623763 |
2 |
Spindle Assembly, Center
(includes items 3-9, 11-19, and 23) |
623780 |
3 |
Hex Bolt |
243331 |
4 |
Washer - Cupped |
257041 |
5 |
Shield - Bearing |
721167 |
6 |
Bearing - Ball 2 Reg Seal 25mm |
110081 |
7 |
Housing Assembly - Spindle Aluminium (includes part number 18) |
604413 |
8 |
Grease Fitting 1/4-28 x 1.125 |
280745 |
9 |
Deep Spindle Bearing Spacer |
903643 |
10 |
Spindle Shaft Assembly 5.75 |
604775 |
11 |
Fiber Washer |
421200 |
12 |
Washer |
257061 |
13 |
Washer - Hardened - Blade Spindle |
257057 |
14 |
Hex Bolt - Flange - Grade 8 |
243583 |
15 |
Round Head Bolt - Ribbed Neck |
247141 |
16 |
Washer |
772061 |
17 |
Deflector Cone |
423680 |
18 |
Relief Plug |
280705 |
19 |
Spindle Shaft Assembly M1 |
604773 |
20 |
Key, Square |
281582 |
21 |
Whiz Nut |
253035 |
22 |
Key, Square |
281583 |
23 |
Washer |
257106 |
