Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

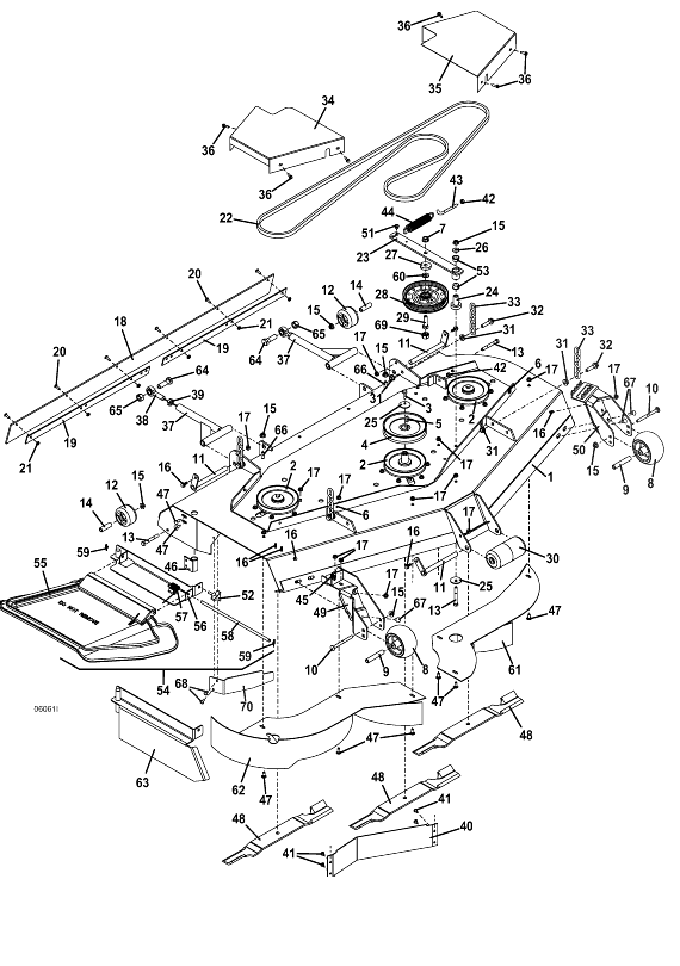

325D • Deck Assembly - M161

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M161 / 07 Deck Weldment

644160

2

Sheave

415892

3

Hex Bolt

243331

4

Sheave

415896

5

Square Key

281582

6

Speed Nut

254431

7

Flange Spiral Lock Nut

253067

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller

426122

13

Hex Bolt

243365

14

Roller Mount Spacer

902284

15

Whiz Nut

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 61 Deck Flap

424204

19

Deflector Strap

774337

20

Bolt

253181

21

Whiz Nut

253025

22

Belt

382085

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing

121650

25

Cupped Washer

257041

26

Washer

257040

27

Washer

257160

28

Idler

393250

29

Hex Bolt

243575

30

2 Piece Center Roller Assembly

603725

31

Whiz Nut

253058

32

GR 8 Hex Bolt

243458

33

M1 5 Links Chain

820331

34

right Belt Shield - Mid 61

722451

35

left Belt Shield - Mid 61

722452

36

Hex Whiz Bolt

253175

37

Radius Arm Assembly - M1 300

604676

38

Rod End

265665

39

Nut

254493

40

M1-3461 Aux. Front Shroud

724589

41

Truss Whiz Bolt

253176

42

Nut

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speeed Nut

254448

46

Vac Housing Pivot Mount

643632

47

Carriage Bolt

247130

48

21" Notched High Lift Blade 21"

320245

-

21" Meduim Lift Blade 21"

320242

-

21" Contour Notch Blade 21"

320244

-

21" Extreme Hi-Lift Blade 21"

320246

-

21" Hi-Low Mulch Blade 21"

320247

-

21" Shredder Blade 21"

320322

49

Right Anti-Scalp Roller Mount 3472

645576

50

Left Anti-Scalp Roller Mount

645589

51

Nylon Bearing

422520

52

3 Prong Head Deck Stud (Knob)

252821

53

Oilite Bearing

121756

54

Discharge Flex Shield Assembly

604317

55

Discharge Flex Shield

422042

56

Discharge Flex Shield Mount

644570

57

Torsion Spring

284406

58

Discharge Flex Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062

61

M1 61 left Mulch Plate

644610

62

M1 61 right Mulch Plate

644611

63

Mulch End Cap

644058

64

Hex Bolt

243810

65

Lock Nut

253970

66

Hex Bolt

243335

-

Washer

257030

67

Carriage Bolt

247135

68

Truss Whiz Bolt

253177

69

Idler Arm Stabilizer Cap

423670

70

Discharge Deflect Shroud

729687
