Genuine OEM Grasshopper® Mower Parts Diagrams

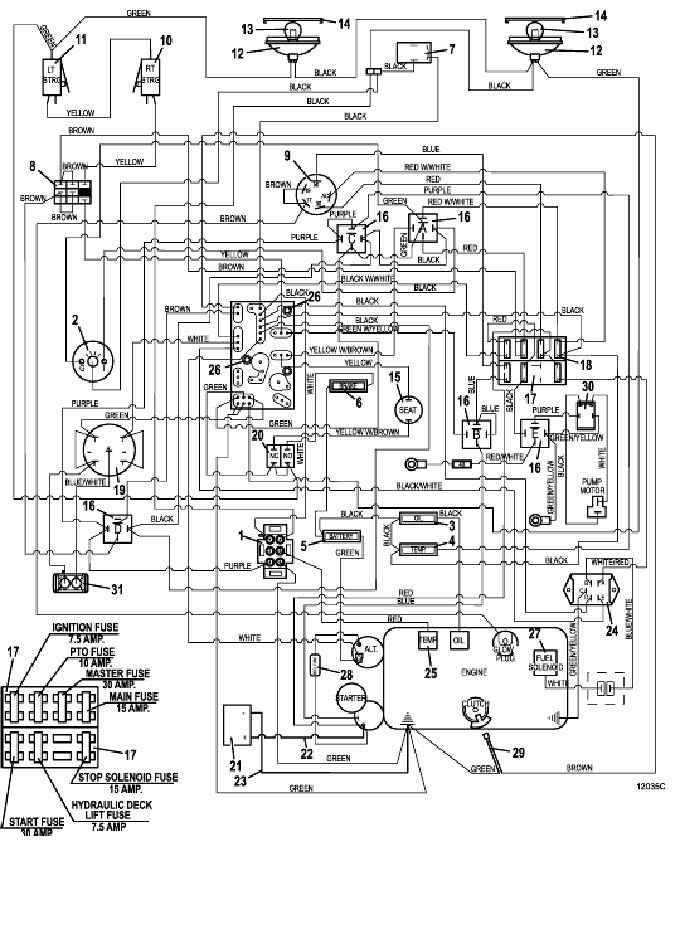

325D • Electrical Wiring

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Temerature Zoned Electric Guage

141165

2

Voltmeter Guage

141203

3

Oil Light Indicator

182327

4

Temperature Indicator Light

182328

5

Batter Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Sealed Kubota Key Switch

183827

-

Double Notch Kubota Ignition Key

101106

10

Lever Switch

183860

-

Right Steering Switch Mount

720160

11

Lever Switch

183860

-

Right Steering Switch Mount

720161

12

Flood Worklamp

182253

13

Worklamp Light Bulb

182005

14

Snap-in Worklamp Light Bezel

182251

15

Twist in Seat Switch

183871

16

12 VDC Relay With Diode

184266

17

Fuse Block

181722

-

1 Wire Fuse Clip

184458

-

2 Wire Fuse Clip

184460

-

Double Clip Fuse Clip

184472

18

30 Amp Fuse

181470

-

7.50 Amp Fuse

181460

-

10 Amp Fuse

181462

-

15 Amp Fuse

181465

19

Snap In Hour Meter

141551

-

Console Mount Fuel Level Guage

141122

20

Brake Interlock Switch

183894

21

12V Wet Sidepost Battery

180130

-

12v Dry Sidepost Battery

180131

-

Hex Bolt

243309

22

42" Red Battery Cable

180340

-

Red Alternator Terminal Boot

425215

-

Starter Terminal Boot

425219

-

Battery Terminal Boot

425223

23

39" Black Battery Cable

180295

24

Switch Interlock Module D902

184217

25

Temperature Sender

141224

26

PC Board Support Spacer

423690

27

Fuel Valve Solenoid

101046

28

Inline Regulator Fuse Holder

604888

-

40 Amp Fuse

181475

29

Pigtail Cable Assembly

604431

30

Toggle

184084

31

2 Terminal Connector

184907

-

Fuel Sender

141235

32

Wiring Assembly 325D

606854
