Genuine OEM Grasshopper® Mower Parts Diagrams

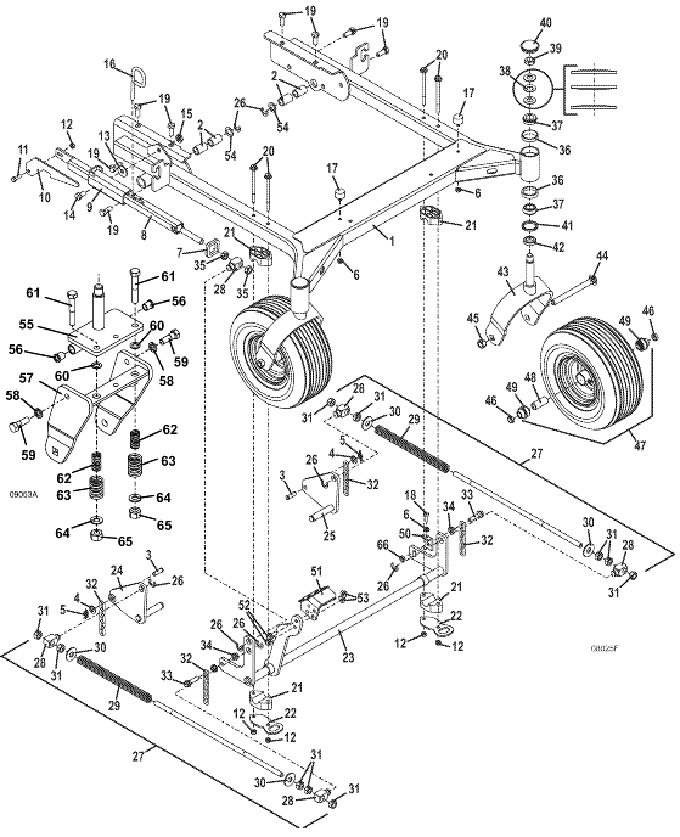

325D • Deck Carrier Assembly M161
2016
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Return to 325D 2016 Index
