Genuine OEM Grasshopper® Mower Parts Diagrams

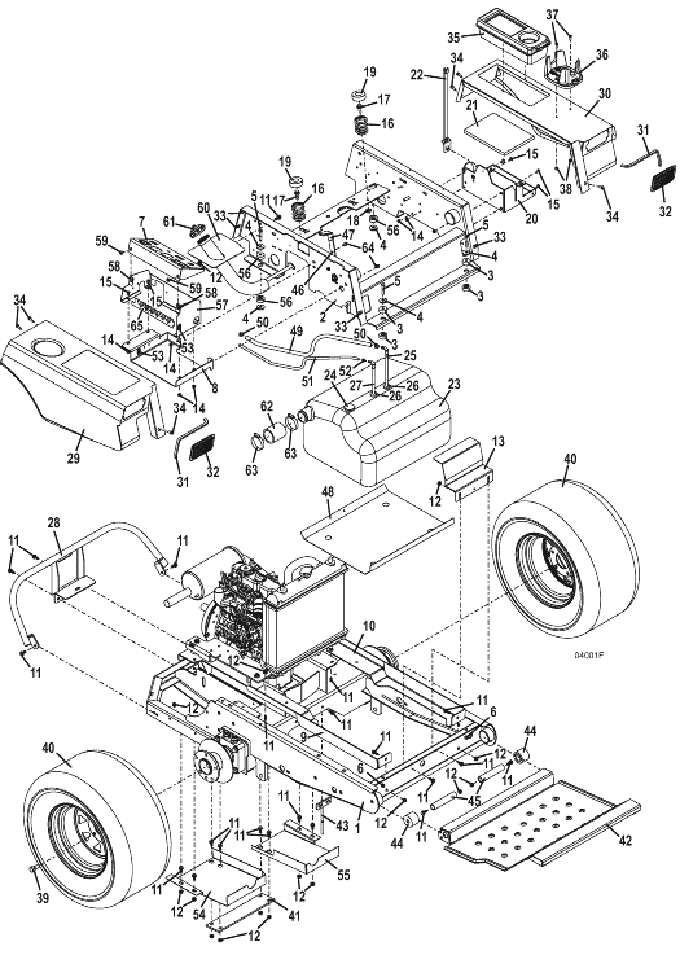

325D • Tractor Assembly - Serial #6614450 & Above
2016
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Lower Frame 322D |
644296 |
2 |
Upper Frame - 300/400 |
644434 |
3 |
Step Bushing |
257037 |
4 |
Washer |
774020 |
5 |
Hex Bolt |
243220 |
6 |
Nylon Insert Nut |
253450 |
7 |
Console with Decal |
693120 |
8 |
Console Mount M1 |
645052 |
9 |
Right Tank Rail 300/400 |
645802 |
10 |
Left Tank Rail 300/400 |
645803 |
11 |
Hex Flange Whiz Bolt |
253192 |
12 |
Whiz Nut |
253035 |
13 |
Front Tank Bracket 300/400 |
723042 |
14 |
Whiz Nut |
253025 |
15 |
Truss Whiz Bolt |
253176 |
16 |
Compression Spring |
283516 |
17 |
Whiz Flange Bolt |
253203 |
18 |
Whiz Nut .375-16 |
253043 |
19 |
Seat Spring Cap |
422127 |
20 |
Battery Box with Strap |
644108 |
21 |
Battery Tray Pad |
427275 |
22 |
Battery Hold-down Strap |
604785 |
23 |
Diesel Tank Assembly M1 |
605800 |
24 |
In-tank Fuel Guage |
141142 |
- |
Grommet |
424275 |
25 |
Fuel Tube |
363929 |
26 |
Fuel Tube Bushing |
101875 |
27 |
Fuel Tube |
363923 |
28 |
Bumper |
645572 |
29 |
Right Fender With Decals 300 |
693224 |
30 |
Left Fender With Decals 300 |
693225 |
31 |
Trim |
822632 |
32 |
Work Lamp Hole Plug |
422079 |
33 |
Speed Nut |
254431 |
34 |
Hex Whiz Bolt |
253175 |
35 |
Tool Box |
422040 |
36 |
Cup Holder |
150225 |
37 |
Cap Screw |
259030 |
38 |
Nut |
254436 |
39 |
Lug Bolt |
248565 |
40 |
Wheel and Tire Assembly Turf 24 x 12 x 12(For 61" and 72" Deck) |
483965 |
- |
Turf Tire 23 x 10.5 x 12(For 52" Deck) |
482485 |
- |
Turf Tire 24 x 12 x 12(For 61" and 72" Deck) |
482486 |
- |
Bar Tread Tire Only 24 x 12 x 12 |
482487 |
- |
Wheel Only 12 x 8.5 x 4.25 (For 61" and 72" Deck) |
483440 |
- |
Wheel Only 12 x 8.5 x 4.25 (For 52" Deck) |
483445 |
- |
Wheel & Turf Tire (For 52" Deck) |
483960 |
- |
Wheel &Tire Bar Tread (right) 24 x 12 x 12 |
483968 |
- |
Wheel &Tire Bar Tread (left) 24 x 12 x 12 |
483969 |
41 |
Belt Guard Strap |
783277 |
42 |
M1 On Frame Footrest |
644256 |
43 |
M1 Deck Belt Guide |
645005 |
44 |
Seat Isolator |
424095 |
45 |
Seat Pin Hinge |
644618 |
46 |
Throttle Assembly 322D/722D |
603858 |
- |
Throttle Control Cable Assembly |
323656 |
- |
Throttle Stop Lever |
722009 |
- |
Heavy Duty Throttle Stop |
722736 |
47 |
Handle Grip |
422150 |
48 |
M1 Fuel Tank Shield |
722949 |
49 |
Fuel Hose |
821715 |
50 |
Spring Hose Clamp |
280261 |
51 |
Fuel Return Hose 430D |
821744 |
52 |
Spring Hose Clamp |
280257 |
53 |
Grommet |
424216 |
54 |
322 Right Hydro Debris Shield |
723396 |
55 |
322 Left Hydro Debris Shield |
723397 |
56 |
Step Bushing |
257038 |
57 |
Console Frame Mount 300/400 |
751036 |
58 |
Nut Plastic Retainer |
254432 |
59 |
Bolt |
253180 |
60 |
Fuel Filler 300/400 |
644887 |
61 |
Screw-on Diesel Fuel Cap |
100211 |
62 |
Fuel Tank Filler Hose |
422027 |
63 |
Screw Type Hose Clamp |
280305 |
64 |
Hex Whiz Bolt |
253173 |
65 |
Relay Mount |
773103 |
66 |
325D Decal Set |
604278 |
