Genuine OEM Grasshopper® Mower Parts Diagrams

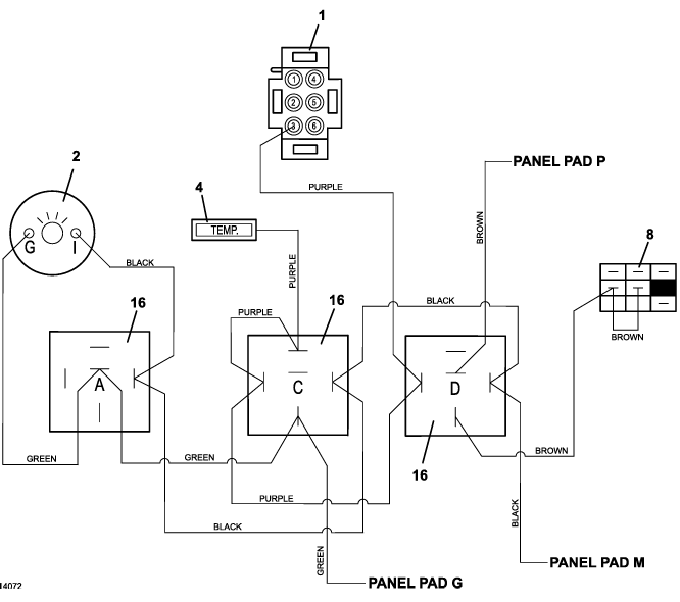

325D • High Temp Wiring Diagram
2016
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Temerature Zoned Electric Guage |
141165 |
2 |
Voltmeter Guage |
141203 |
4 |
Temperature Indicator Light |
182328 |
8 |
Push/Pull Switch |
183925 |
16 |
12 VDC Relay |
184266 |
