Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

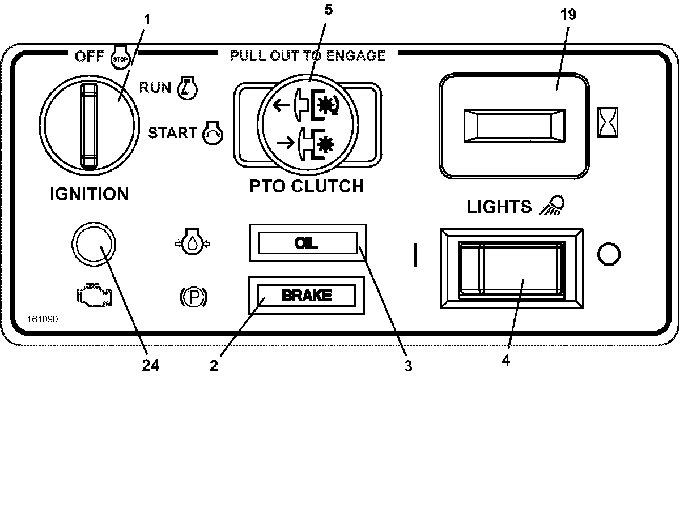

327EFI • Console

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Key Switch B & S/Kohler

183806

-

Nut

254498

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

19

Snap-in Hour Meter

141551

24

MIL Light Indicator

182322

25

Console Decal

161090

Return to 327EFI 2014 Index Return to Top of Page
