Genuine OEM Grasshopper® Mower Parts Diagrams

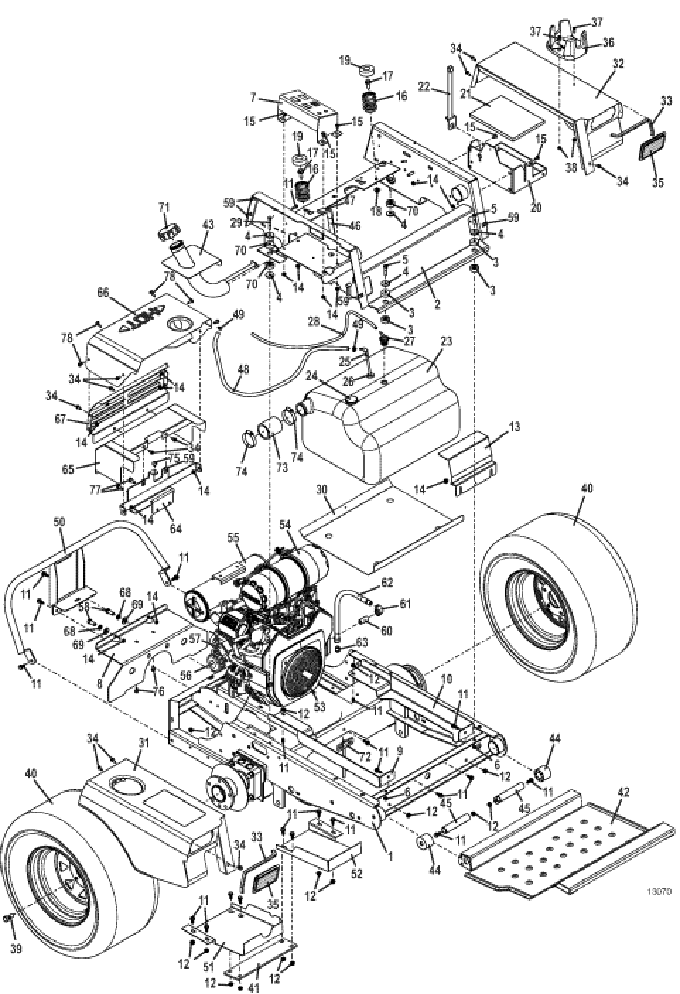

327EFI • Tractor Assembly

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Frame -

645210

2

Upper Frame

644889

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

Console w/Decal

693117

8

Muffler Bracket

766312

9

Right Tank Rail

645800

10

Left Tank Rail

645801

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Gas Tank Anchor

722948

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1/200V Tank Assembly

605798

24

Intank Fuel Gauge

141142

-

Grommet - Fuel Gauge Mount

424275

25

Fuel Tube

363925

26

Fuel Tube Bushing (Grommet)

101875

27

Fuel Tank Valve - 2011

100216

28

Fuel Vapor Hose

821764

29

Hex Bolt

243225

30

M1 Fuel Tank Shield

722949

31

Fender w/Decals 300B RT

693226

32

Fender w/Decals 300B LT

693227

33

Trim

822632

34

Hex Whiz Bolt

253175

35

Work Lamp Hole Plug

422079

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire 24 x 12 x 12

483965

-

Turf Tire 23 x 10.5 x 12

482485

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

Wheel Only 12 x 8.5 x 5.750 (for 52" Decks)

483445

-

Wheel & Tire 23 x 10.5 x 12

483960

-

12" Wheel & Bar Tread Tire (right)

483968

-

12" Wheel & Bar Tread Tire (left)

483969

41

Belt Guard Strap

783277

42

M1 On Frame Footrest

644256

-

M1 Frame Mount Footrest

644228

43

Fuel Filler

644886

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle Assembly

604831

-

Throttle Control Cable

323650

-

Throttle Lever Stop

722009

-

Throttle Stop -Heavy Duty

722736

47

Handle Grip

422150

48

Fuel Hose

821770

49

Spring Hose Clamp

280260

50

Bumper

645572

51

300 right Hydro Debris Shield

723050

52

300 left Hydro Debris Shield

723051

53

27HP Kohler EFI M1 Engine

100081

-

Kohler Engine Shim

900117

54

Outer Air Filter HD

100936

-

Inner Air Filter HD

100937

55

Kohler EFI Muffler

101215

-

Kohler EFI Exhaust Gasket

101041

56

Kohler Oil Filter

100802

57

Kohler Fuel Filter

101001

58

Hex Bolt

243445

59

Speed Nut

254431

60

Nipple

364508

61

Ell

362215

62

Engine Oil Drain Hose Assembly

424474

63

Metal Pipe Plug

365515

64

Bracket Assembly

605126

65

Inner Panel W/A

645191

66

Hood Panel

751300

67

Grille Panel

751125

68

Lock Washer

257422

69

Washer

257040

70

Step Bushing

257038

71

Cap Fuel - Sealed Tether - Ext

100213

72

M1 Deck Belt Guide

645005

73

Fuel Tank Filler Hose

422027

74

Hose Clamp - Screw Type

280305

75

Rubber Bumper

424015

76

Hex Bolt

270821

77

Flanged Hex Bolt W/ Ser

271021

78

Phillips Head Truss Whiz Bolt

253179

79

327 EFI Decal Set

605535
