Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

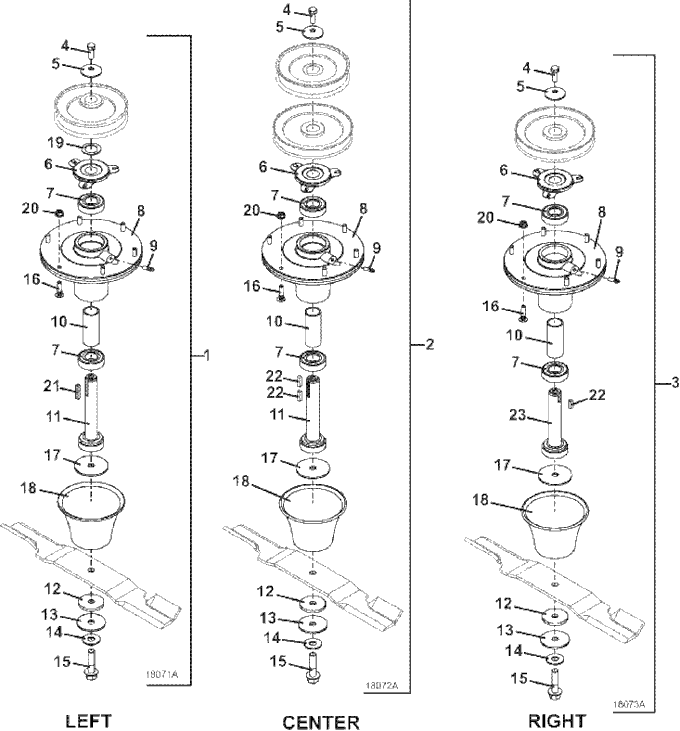

328G4 • Blade Spindle Assembly - 52 Inch

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

300G452 Left Blade Spindle Assembly

623736

2

300G452 Center Blade Spindle Assembly

623737

3

Blade Spindle Assembly

623763

4

Hex Bolt

243331

5

Cupped Washer

257041

6

Bearing Shield

721167

7

Ball Bearing

110081

8

Aluminum Spindle Housing Assembly

604413

9

Zerk Grease Fitting

280745

10

Deep Spindle Bearing Spacer

903643

11

Spindle Shaft Assembly

604774

12

Fiber Washer

421200

13

Washer

257061

14

Hardened Blade Spindle Washer

257057

15

Grade 8 Flange Hex Bolt

243583

16

Round Head Ribbed Neck Bolt

247141

17

Washer

257055

18

Deflector Cone

423680

19

Washer

257104

20

Whiz Nut

253035

21

Square Key

281583

22

Square Key

281582

23

Spindle Shaft Assembly

604775

return to 328G4 index return to top of page
