Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

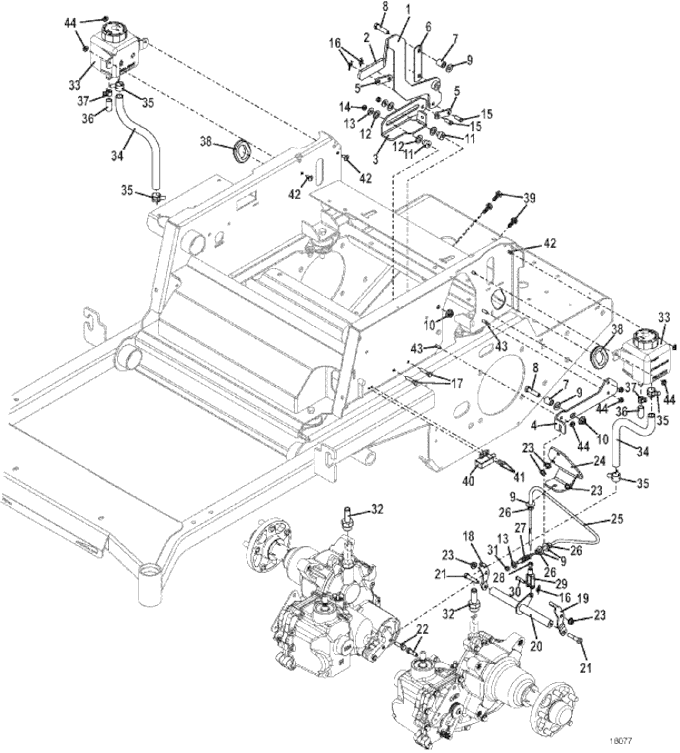

328G4 • Brake Assembly & Expansion Tanks

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Brake Lever

644469

2

Handle Grip

422150

3

Bracket

725656

4

Cable Mount Bracket

725655

5

Brake Link

775092

6

Reinforcement Pin

774145

7

Spacer

902283

8

Hex Bolt

243340

9

Washer

257030

10

Whiz Nut

253043

11

Brake Lever Spacer

881130

12

Washer

257063

13

Washer

257020

14

Nylon Insert Nut

253440

15

Clevis Pin

261279

16

Cotter Ring

260606

17

Hex Bolt

243030

18

Right Brake Arm

725698

19

Left Brake Arm

725699

20

Brake Rod

645118

21

Hex Bolt

243215

22

Hex Bolt

243205

23

Whiz Nut

253035

24

Cable Mount

725592

25

Brake Cable Assembly

323601

26

Nut

254441

27

Compression Spring

283311

28

Nut

254434

29

Clevis Yoke

265530

30

Clevis Pin

261236

31

Nylon Insert Nut

253441

32

Fitting

360083

33

Expansion Tank

421983

34

Hydraulic Hose

821811

35

Clamp Hose Spring

280266

36

Manifold Fitting Cap

422102

37

Clamp Hose Spring

280263

38

Grommet

424290

39

Whiz Flange Hex Bolt

253192

40

Brake Interlock Switch

183894

41

Machine Screw

250258

-

Nut

254421

42

Truss Whiz Bolt

253176

43

Truss Whiz Bolt

253177

44

Whiz Nut

253025
