Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

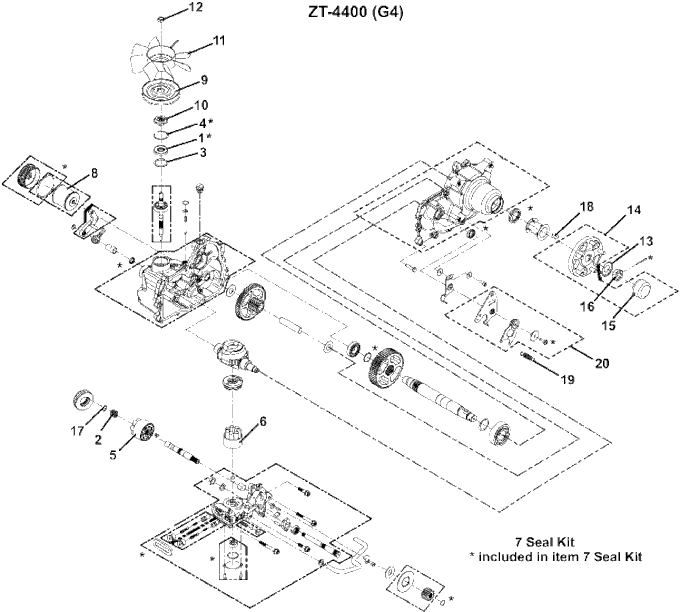

328G4 • G4 Drive Breakdown

2019

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125363

2

Block Spring

130015

3

Input Seal Spacer

130086

4

Retaining Ring

130093

5

Block Kit

130152

6

Block Kit

130153

7

Seal Kit

130200

8

Filter Kit

130205

9

Pulley/Fan Kit

130230

10

Fan Hub

130232

11

Fan

130234

12

Jam Nut

130235

13

Axle Washer

130288

14

Hub Kit

130290

15

Axle Cap

130292

16

Castle Nut

254523

17

External Retainer

263515

18

Woodruff Key

281860

19

Return Spring

130224

20

Left Return Kit

130222

-

Right Return Kit

130223

Return to 328G4 Index Return to Top
