Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

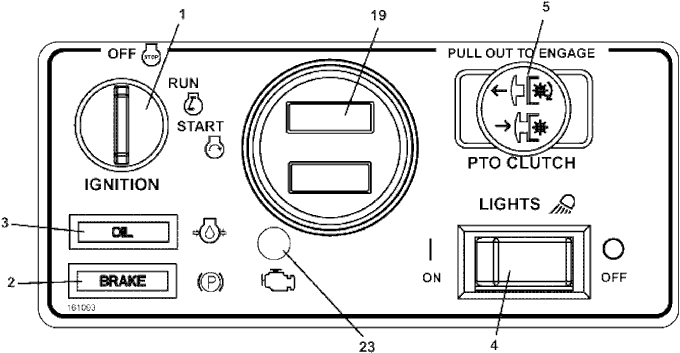

328G4 • Console Diagram

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

B&S/Kohler Key Switch

183806

-

Indak Key Ignition w/Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Rocker Switch

184179

5

Push/Pull Switch

183925

19

Console Mount - Fuel Level Gauge

141122

23

MIL Light Indicator

182322

24

Console Decal

161093
