Genuine OEM Grasshopper® Mower Parts Diagrams

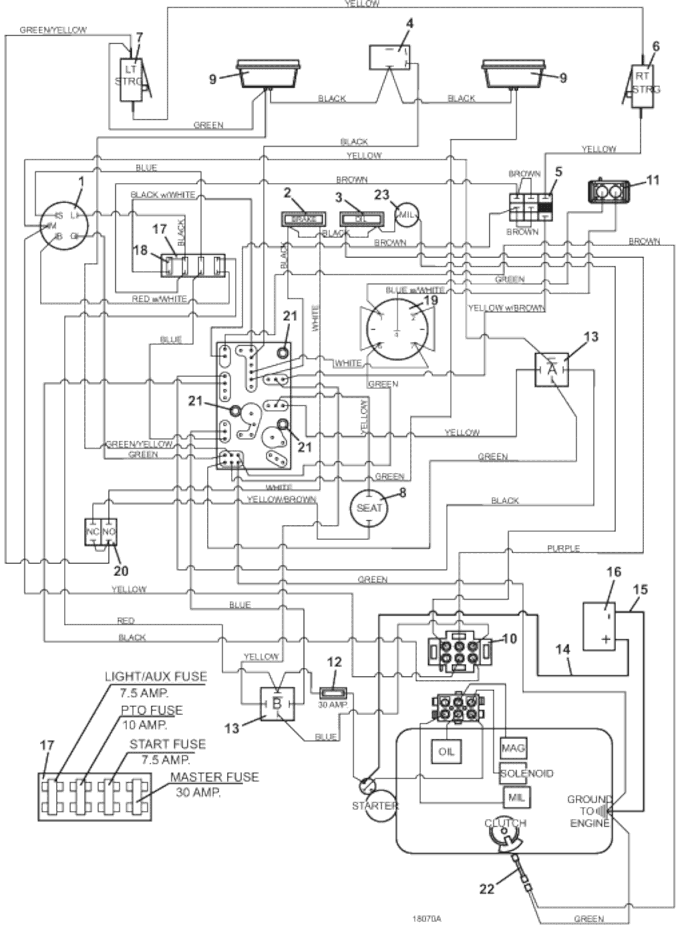

328G4 • Electrical Wiring
2020
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Key Switch B & S/Kohler |
183806 |
- |
Key Ignition w/Cover |
101101 |
- |
Nut |
254498 |
- |
Panel Plastic |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Rocker Switch |
184179 |
5 |
Push/Pull Switch |
183925 |
6 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
7 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
8 |
Twist-In Seat Switch |
183871 |
9 |
Worklamp - LED Mini Left Bar Flood Mount |
182262 |
10 |
6 Terminal Connector (AMP) |
184911 |
- |
Pin Mate N-Lock |
181768 |
11 |
2 Terminal Connector |
184907 |
- |
Fuel Sender |
141235 |
12 |
In-Line Auto Fuse Holder |
181735 |
- |
Auto Fuse ATC - 30 |
181470 |
13 |
12 volt DC Relay w/Mt |
184271 |
14 |
Battery Cable 42 Inch Red |
180340 |
- |
Red Alternator Terminal Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
15 |
Battery Cable 39 Inch Black |
180295 |
16 |
12 Volt Sidepost Wet Battery |
180130 |
- |
Hex Bolt |
243309 |
17 |
Fuse Block |
181722 |
- |
Fuse ID Decal |
162354 |
18 |
Auto ATC 30 Amp Fuse |
181470 |
- |
Auto ATC 7.5 Amp Fuse |
181460 |
- |
Auto ATC 10 Amp Fuse |
181462 |
19 |
Console Mount Fuel Level Guage |
141122 |
20 |
Brake Interlock Switch |
183894 |
21 |
PC Board Support Spacer |
423690 |
22 |
Pigtail Cable Assembly |
388840 |
23 |
Light Indicator - MIL |
182322 |
24 |
328G4 Wire Assembly |
606867 |
25 |
Console Decal |
161093 |
Return to 328G4 Index
