Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

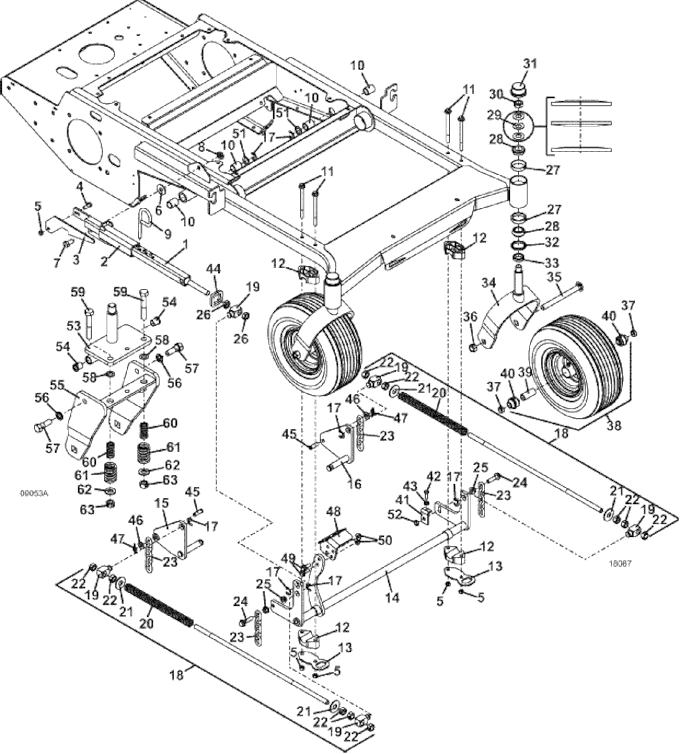

328G4 • 52 Inch Deck Carrier Assembly

2021

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Height Adjustment Tube

644778

2

Latch Tube Guide

644306

3

Deck Latch

775104

4

Hex Bolt

243330

5

Lock Nut

253890

6

Nylon Washer

821516

7

Hex Bolt

243560

8

Nylon Insert Nut

253470

9

Height Adjustment Deck Pin

730434

10

Poly Bearing

422640

11

Flange Bolt

253215

12

M1 Bearing Block

423643

13

Lift Bearing Plate

774064

14

Adjustable Deck Lift Lever

644488

15

Right Rear Deck Rocker

644707

16

Left Rear Deck Rocker

644708

17

External Retainer

263529

18

Rod Assembly

326101

19

Shaft - Spring Rod Mount

882035

20

Compression Spring

283392

21

Washer

257080

22

Nut

254490

23

M1 5 Links Chain

820331

24

Grade 8 Hex Bolt

243458

25

Whiz Nut

253058

26

Nut

254493

27

Bearing Cup

123522

28

Taper Bearing

122522

29

Spring Washer

257320

30

Nut - Jam Nylon - Toplock

254505

31

Dust Cap

481432

32

Seal

125855

33

Spacer

282615

34

Tailwheel Tapered Bearing Fork

645221

35

Carriage Bolt

247726

36

Lock Nut

253970

37

Axle Spacer

902422

38

Rear Wheel & Tire Assembly w/DP Bearings

603975

-

Rib Tire

482355

-

Wheel

483306

39

Axle Spacer

423750

40

Ball DP Wheel Bearing

120048

41

Adjusting Deck Strap

732586

42

Hex Bolt

243205

43

Whiz Nut

253035

44

Height Adjustment Spacer

423696

45

Clevis Pin

261405

46

Washer

257051

47

Cotter Ring

260612

48

Carrier Adjustment Foot Pedal

644467

49

Whiz Flange Bolt

253203

50

Whiz Nut

253043

51

18 Gauge Bushing Washer

257092

52

Nut

254461

53

Pivot - Fork Yoke Suspension

643677

54

Oilite Bearing

121734

55

Fork Yoke - Suspension

643313

56

Lock Washer

257442

57

Pivot Bolt - Suspension Fork

887114

58

Washer

257063

59

Hex Bolt

243600

60

Compression Spring

283326

61

Compression Spring

283389

62

Washer

257062

63

Lock Nut

253930
