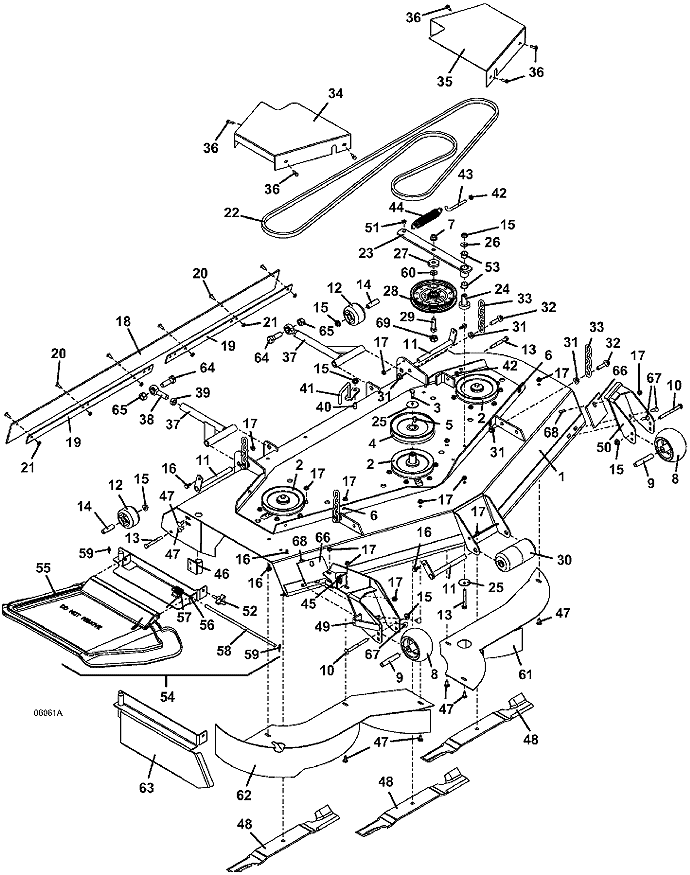

Item # |
Description |
Part Number |
1 |
M172/07 Deck Weldment |
644161 |
2 |
Sheave |
414745 |
3 |
Hex Bolt |
243331 |
4 |
Sheave |
415894 |
5 |
Square Key |
281582 |
6 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
7 |
Flange Spiral Lock Nut |
253067 |
8 |
Anti-Scalp Center Hub Wheel |
484230 |
9 |
Bearing Tube |
942137 |
10 |
Carriage Bolt |
247310 |
11 |
Roller Lock Pin |
644512 |
12 |
Center 2-Piece Roller Assembly |
603725 |
13 |
Hex Bolt |
243365 |
14 |
Hex Whiz Bolt |
253175 |
15 |
Whiz Nut |
253043 |
16 |
3 Prong Head Deck Stud (Knob) |
252821 |
17 |
Whiz Nut |
253035 |
18 |
M1 72 Deck Flap |
424206 |
19 |
Deflector Strap |
774337 |
20 |
Truss Whiz Bolt |
253177 |
21 |
Whiz Nut |
253025 |
22 |
Belt |
382098 |
23 |
Idler Arm 72 Deep F/A |
824494 |
24 |
Pedestal Bearing |
121650 |
25 |
Cupped Washer |
257041 |
26 |
Washer |
257040 |
27 |
Retainer Washer |
883804 |
28 |
Idler |
393250 |
29 |
Hex Bolt |
243575 |
30 |
Cotter Ring |
260608 |
31 |
Whiz Nut |
253058 |
32 |
Hex Bolt GR 8 |
243458 |
33 |
Chain - 5 Links M1 |
820331 |
34 |
M1 72 right Belt Shield |
723330 |
35 |
M1 72 left Belt Shield |
723331 |
36 |
Roller Mount M1 72 |
755071 |
37 |
Radius Arm Assembly - M1 300 |
604676 |
38 |
Rod End |
265665 |
39 |
Nut |
254493 |
40 |
Flange Whiz Bolt |
253203 |
41 |
M1 Deck Belt Guide |
644086 |
42 |
Nut |
254450 |
43 |
Idler Adjustment J Bolt |
730391 |
44 |
Extension Spring |
283848 |
45 |
Speeed Nut |
254448 |
46 |
Pivot Mount for Vac Housing |
643632 |
47 |
Carriage Bolt |
247130 |
48 |
25" Medium Lift Blade |
320250 |
- |
25" Contour Blade |
320252 |
- |
25" High Lift Notch Blade |
320253 |
- |
25" Extreme Hi-Lift Blade |
320254 |
- |
25" Hi-Low Mulch Blade |
320255 |
49 |
right Anti-Scalp Roller Mount |
644584 |
50 |
left Anti-Scalp Roller Mount |
643695 |
51 |
Speed Nut |
254431 |
52 |
Carriage Bolt |
247253 |
53 |
Nylon Bearing |
422520 |
54 |
Oilite Bearing |
121756 |
55 |
Washer |
257062 |
56 |
Discharge Flex Shield Assembly |
604317 |
57 |
Discharge Flex Shield |
422042 |
58 |
Discharge Flex Shield Mount |
644570 |
59 |
Torsion Spring |
284406 |
60 |
Discharge Flex Shield Pin |
780650 |
61 |
right Mulch Plate |
644612 |
62 |
left Mulch Plate |
644613 |
63 |
Mulch End Cap |
644058 |
64 |
Hex Bolt |
243810 |
65 |
Lock Nut |
253970 |
66 |
Roller Spacer |
775068 |
67 |
Carriage Bolt |
247135 |
68 |
Hex Flange Whiz Bolt |
253193 |
69 |
Idler Arm Stabilizer Cap |
423670 |
