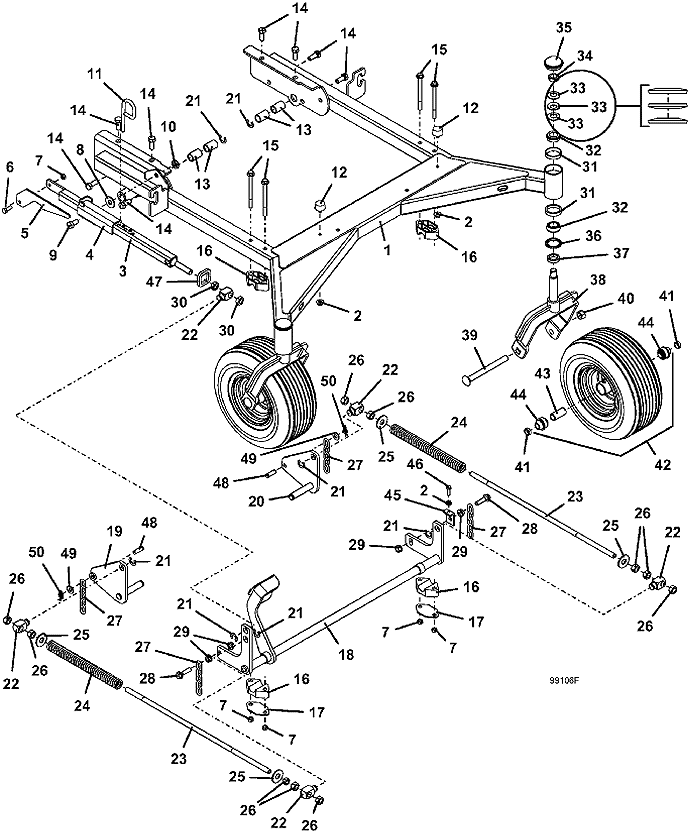

Item # |
Description |
Part Number |
1 |
Carrier - M172 |
644135 |
- |
Cutting Height Decal |
162187 |
2 |
Whiz Nut |
253035 |
3 |
M1 Height Adjustment Tube |
644778 |
4 |
Latch Tube Guide |
644305 |
5 |
Deck Latch |
775104 |
6 |
Hex Bolt |
243330 |
7 |
Lock Nut |
253890 |
8 |
Nylon Washer |
821516 |
9 |
Hex Bolt |
243560 |
10 |
Nylon Insert Nut |
253470 |
11 |
Height Adjustment Deck Pin |
730434 |
12 |
Rubber Bumper |
424052 |
13 |
Oilite Bearing |
121766 |
14 |
Hex Bolt |
243565 |
- |
Flange Spiral Lock Nut |
253067 |
15 |
Flange Bolt |
253215 |
16 |
M1 Bearing Block |
423643 |
17 |
Lift Bearing Plate |
774064 |
18 |
M1 Deck Lift Lever |
644524 |
19 |
M1 right Rear Deck Rocker |
644707 |
20 |
M1 left Rear Deck Rocker |
644708 |
21 |
External Retainer |
263529 |
22 |
Spring Rod Shaft Mount |
882035 |
23 |
Spring Shaft |
780663 |
24 |
Compression Spring |
283395 |
25 |
Washer |
257080 |
26 |
Nut |
254490 |
27 |
M1 Chain - 5 Links |
820331 |
28 |
Hex Bolt GR 8 |
243458 |
29 |
Whiz Nut |
253058 |
30 |
Nut |
254493 |
31 |
Bearing Cup |
123522 |
32 |
Taper Bearing |
122522 |
33 |
Spring Washer |
257320 |
34 |
Jam Nylon Top Lock Nut |
254505 |
35 |
Domed Dust Cap |
481434 |
36 |
Seal |
125855 |
37 |
Spacer |
282615 |
38 |
Fork & Lock Nut Assembly |
604365 |
39 |
Carriage Bolt |
247725 |
40 |
Lock Nut |
253970 |
41 |
Axle Spacer |
902422 |
42 |
Rear Wheel Assembly with Bearings 13x6.5x6 |
603975 |
- |
Ribbed Tire 13 x 6.50 x 6 |
482355 |
- |
Wheel without Tire / without Bearings 6 x 4.5 |
483306 |
43 |
Rear Axle Center Spacer |
902429 |
44 |
DP Wheel Ball Bearing |
120048 |
45 |
M1 Deck Adjusting Strap |
732586 |
46 |
Hex Bolt |
243205 |
47 |
M1 Height Adjustment Spacer |
423696 |
48 |
Clevis Pin |
261405 |
49 |
Washer |
257051 |
50 |
Cotter Ring |
260612 |
