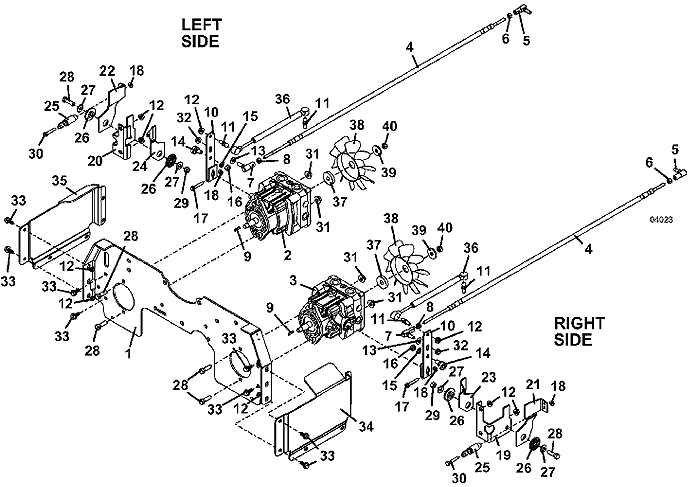

Item # |
Description |
Part Number |
1 |
Pump Plate |
644619 |
2 |
Hydro Pump - left |
391462 |
3 |
Hydro Pump - right |
391463 |
4 |
322D Steering Linkage Rod |
604529 |
5 |
Ball Joint, Righthand Thread |
265615 |
6 |
Nut |
254441 |
7 |
Ball Joint - Lefthand Thread |
265616 |
8 |
Nut |
254444 |
9 |
Rectangle Key |
281562 |
10 |
Right Pump Control Arm |
725338 |
11 |
Ball Stud |
265680 |
12 |
Whiz Nut |
253035 |
13 |
Washer |
257020 |
14 |
Eccentric Roller Assembly |
603726 |
15 |
External Star Washer |
257410 |
16 |
Nut |
254450 |
17 |
Hex Whiz Bolt |
253182 |
19 |
M1 right Neutral Return Mount |
754128 |
20 |
M1 left Neutral Return Mount |
754129/p> |
21 |
right Neutral Return Front Arm |
729136 |
22 |
left Neutral Return Front Arm |
729137 |
23 |
right Neutral Return Arm |
729138 |
24 |
left Neutral Return Arm |
729139 |
25 |
Extension Spring |
283823 |
26 |
Neutral Return Pivot Bearing |
822304 |
27 |
Washer |
257030 |
28 |
Hex Bolt |
243335 |
29 |
Lock Nut |
253890 |
30 |
Hex Bolt |
243035 |
31 |
Whiz Nut |
253043 |
32 |
Whiz Nut |
253038 |
33 |
Hex Flange Whiz Bolt |
253192 |
34 |
322 Series right Rein Plate |
729501 |
35 |
322 Series left Rein Plate |
729502 |
36 |
Damper |
285031 |
37 |
10A Fan Mount Hub |
885123 |
38 |
7" Clockwise Nylon Fan |
320857 |
39 |
Washer |
774020 |
40 |
Nut |
254452 |
