Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

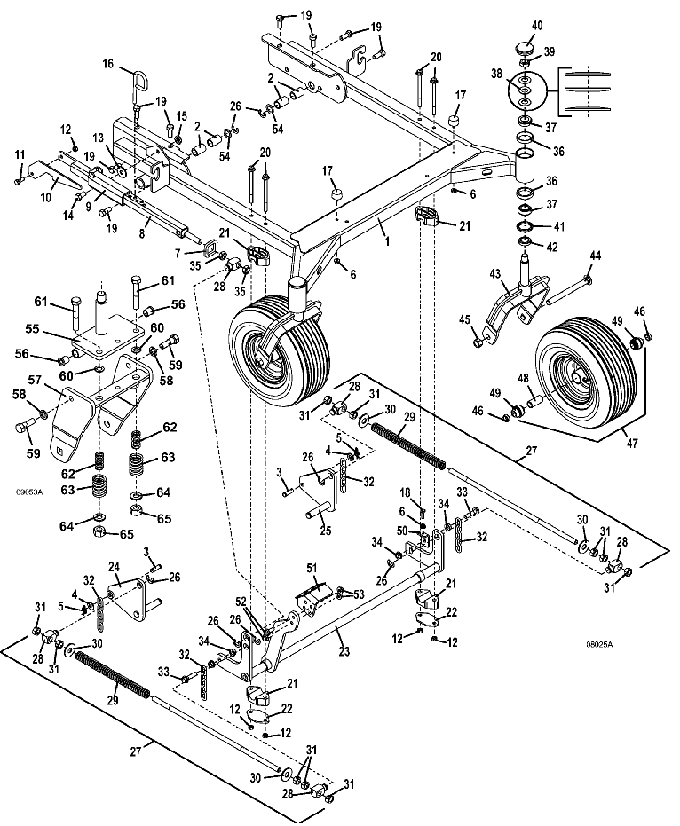

329 • Deck Carrier Assembly M161

2010

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M161 Extension Carrier

645153

-

Cutting Height Decal

162187

2

Oilite Bearing

121766

3

Clevis Pin

261405

4

Washer

257051

5

Cotter Ring

260612

6

Whiz Nut

253035

7

M1 Height Adjustment Spacer

423696

8

M1 Height Adjustment Tube

644778

9

Latch Tube Guide

644305

10

Deck Latch

775104

11

Hex Bolt

243330

12

Lock Nut

253890

13

Nylon Washer

821516

14

Hex Bolt

243560

15

Nylon Insert Nut

253470

16

Height Adjustment Deck Pin

730434

17

Rubber Bumper

424052

18

Hex Bolt

243205

19

Hex Bolt

243565

-

Flanged Spiral Lock Nut

253067

20

Flange Bolt

253215

21

M1 Bearing Block

423643

22

Lift Bearing Plate

774064

23

M1 Deck Adjustment Lift Lever

644481

24

M1 right Rear Deck Rocker

644707

25

M1 left Rear Deck Rocker

644708

26

External Retainer

263529

27

M161 Rod And Spring Assembly

326105

28

Spring Rod Mount Shaft

882035

29

Compression Spring

283395

30

Washer

257080

31

Nut

254490

32

M1 Chain - 5 Links

820331

33

Hex Bolt GR 8

243458

34

Whiz Nut

253058

35

Nut

254493

36

Bearing Cup

123522

37

Taper Bearing

122522

38

Spring Washer

257320

39

Jam Nylon Top Lock Nut

254505

40

Domed Dust Cap

481434

41

Seal

125855

42

Spacer

282615

43

Fork & Lock Nut Assembly

604365

44

Carriage Bolt

247725

45

Lock Nut

253970

46

Axle Spacer

902422

47

Rear Wheel Assembly with Bearings 13x6.5x6

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire / without Bearings 6 x 4.5

483306

48

Rear Axle Center Spacer

902429

49

DP Wheel Ball Bearing

120048

50

M1 Deck Adjusting Strap

732586

51

M1 Carrier Adjustment Foot Pedal

644467

52

Flanged Whiz Bolt

253203

53

Whiz Nut

253043

54

18 Guage Bushing Washer

257092

55

Suspension Yoke Pivot Fork

643677

56

Oilite Bearing

121734

57

Fork Yoke - Suspension

643313

58

Lock Washer

257442

59

Pivot Bolt - Suspension Fork

887114

60

Washer

257063

61

Hex Bolt

243600

62

Compression Spring

283326

63

Compression Spring

283389

64

Washer

257062

65

Lock Nut

253930
