Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

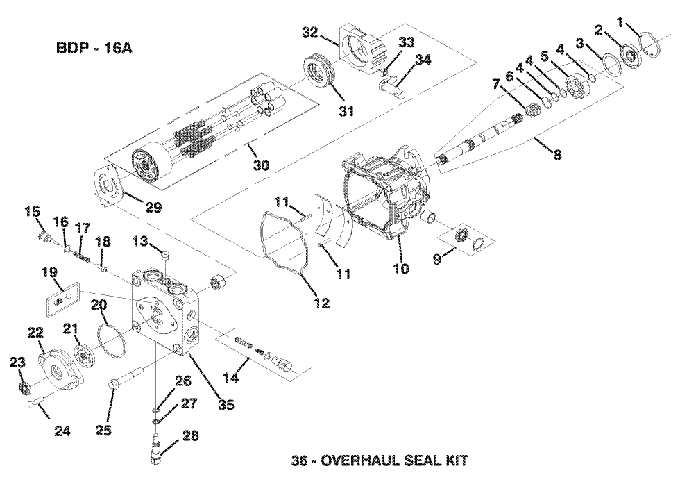

329 • Pump Assembly

2010

Wheel Motor and Brake Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 329 Index Return to Top

Item #

Description

Part Number

1

Input Seal Retaining Ring

130088

2

Input Seal

130163

3

Input Seal Spacer

130086

4

Input Bearing

130170

5

Input Bearing

130080

6

Block Thrust Washer

130220

7

Block Spring

130015

8

Shaft Kit

130178

9

Trunnion Seal Kit

125357

10

housing Kit

130054

11

Locating Pin

130046

12

Molded Seal Ring

130184

13

O-Ring Boss Plug

103739

14

Shock Valve Kit

130160

15

Check Plug

130030

16

Check Plug O-Ring

130031

17

Poppet Spring

130157

18

Poppet

130155

19

Charge Relief Kit

130027

20

Charge Cover Seal Ring

130020

21

Gerotor Set

130060

22

Charge Cover

130022

23

Fan Shaft Seal

125165

24

Socket Head Cap Screw

270078

25

Flanged Head Hex Screw

271080

26

Bypass Valve O-Ring

130018

27

Back Up Ring

130017

28

Bypass Valve - NOT AVAILABLE

000000

29

Valve Plate(Omitted from Serial Number 6100000 and Above/Pump Serial Number 0216P00000 and Above)

130214

30

Block Kit

130152

31

Thrust Bearing

130008

32

Swashplate - NOT AVAILABLE

000000

33

Guide Block

130065

34

Trunnion Arm

130035

35

End Cap

130044

-

End Cap(Omitted from Serial Number 6100000 and Above/Pump Serial Number 0216P00000 and Above)

130048

36

Seal Kit

130186
