Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

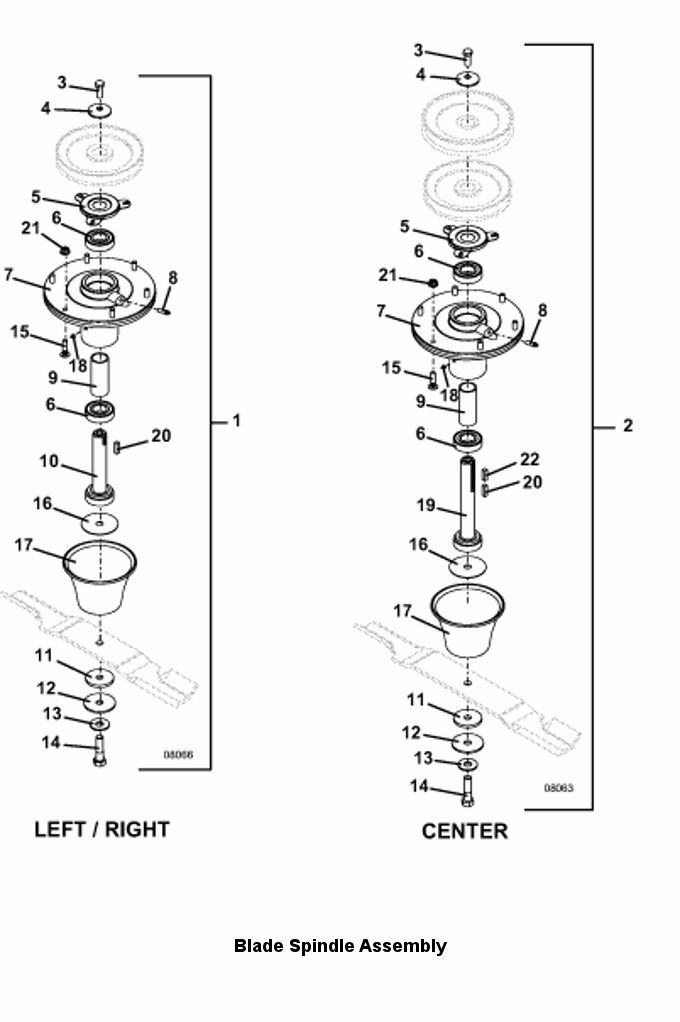

329B • Blade Spindle Assembly - M152 / M161

2009

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left & Right Spindle Assembly (includes items 3-18)

623763

2

Center M1 Blade Spindle Assembly, center (includes items 3-9 and 11-19)

623780

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Bearing Shield

721167

6

Ball Bearing

110081

7

Aluminum Spindle Housing Assembly

604413

8

Zerk Grease Fitting

280745

9

Deep Spindle Bearing Spacer

903643

10

5.75 Spindle Shaft Assembly

604775

11

Fiber Washer

421200

12

Washer

257061

13

Hardened Blade Spindle Washer

257057

14

Hex Bolt

243583

15

Round Head Ribbed Neck Bolt

247141

16

Washer

772061

17

Deflector Cone

423680

18

Relief Plug

280705

19

M1 Spindle Shaft Assembly

604773

20

Key Square

281580

21

Whiz Nut

253035

22

Square Key

281582
