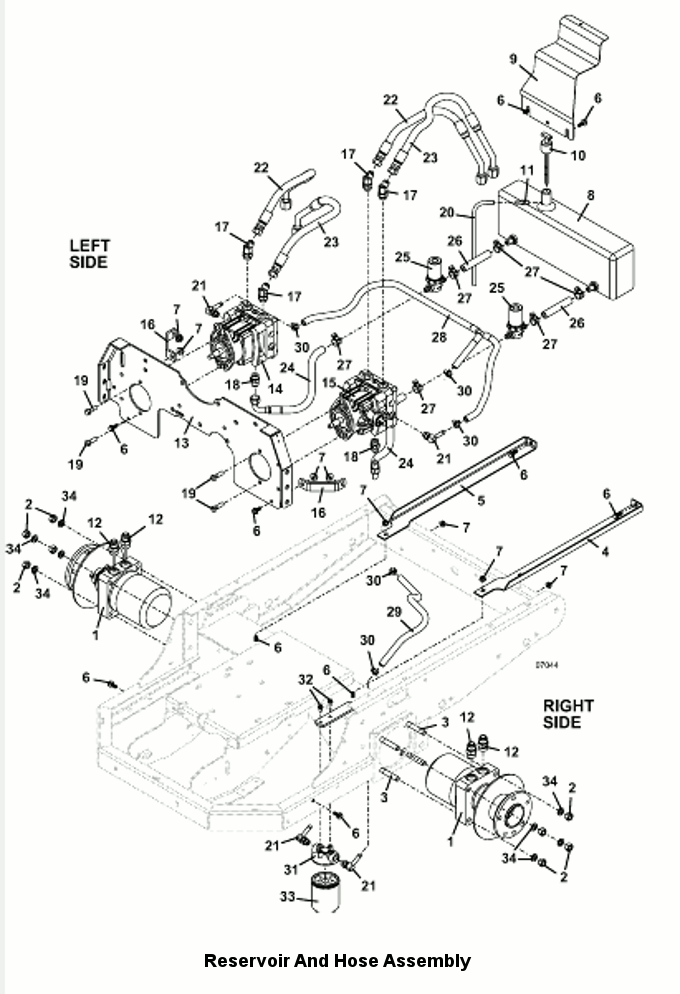

Item # |
Description |
Part Number |
1 |
Wheel Motor with Hub |
603602 |
2 |
Nut |
254470 |
3 |
Pin Head Bolt Assembly |
604160 |
4 |
Tank Rail - right |
754051 |
5 |
Tank Rail - left |
754052 |
6 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
7 |
Whiz Nut |
253035 |
8 |
M1 300/400 Oil Reservoir Assembly |
603606 |
- |
Grommet |
101875 |
- |
Grommet |
101880 |
- |
Straight Fitting |
360058 |
- |
90 degree Fitting |
363638 |
9 |
Oil/Fuel Tank Anchor |
723159 |
10 |
M1 Oil Reservoir Dipstick |
100728 |
11 |
Straight Barbed Fitting |
363826 |
12 |
Adapter Fitting |
360069 |
13 |
Pump Plate |
644619 |
14 |
Hydro Pump - left |
391462 |
15 |
Hydro Pump - right |
391463 |
16 |
Pump Plate Rein Strap |
732882 |
17 |
Adapter Fitting |
360046 |
18 |
Steel O-Ring Boss Fitting |
363832 |
19 |
Hex Bolt |
243335 |
20 |
Clear Vent Hose |
821724 |
21 |
Adapter |
360056 |
22 |
Hose Assembly |
424375 |
23 |
Hose Assembly |
424377 |
24 |
Hose Assembly |
424314 |
25 |
In-Line Strainer |
366553 |
26 |
Hydraulic Hose |
821794 |
27 |
Spring Hose Clamp |
280266 |
28 |
Hose Assembly |
424313 |
29 |
Hydraulic Hose |
821787 |
30 |
Spring Hose Clamp |
280264 |
31 |
M1 Series Filter Base |
101024 |
32 |
Hex Whiz Bolt |
253173 |
33 |
High-Efficiency Transaxle Oil Filter |
100855 |
34 |
Lock Washer |
257432 |
