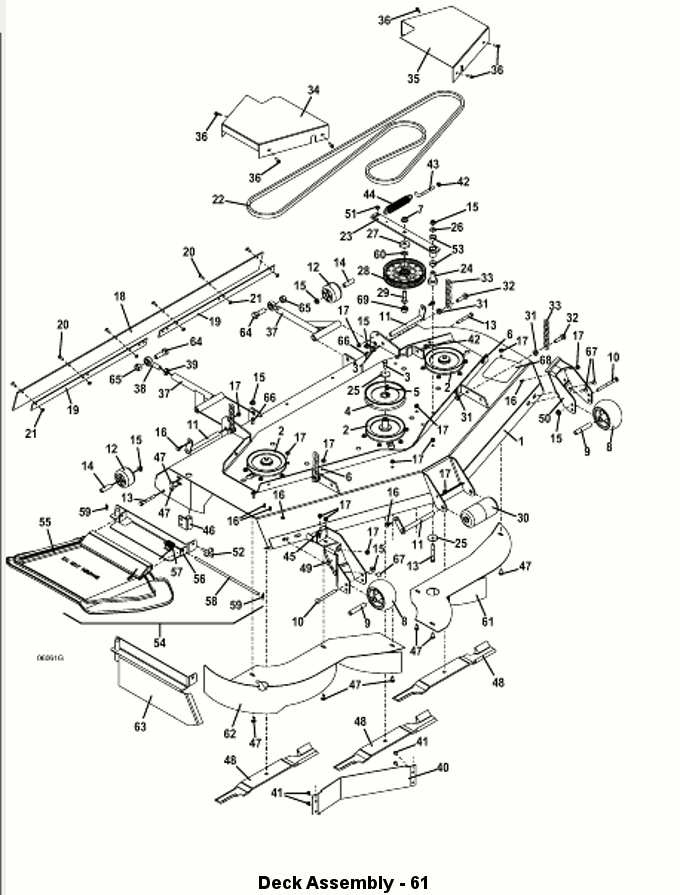

Item # |
Description |
Part Number |
1 |
M161 / 07 Deck Weldment |
644160 |
2 |
Sheave |
415892 |
3 |
Hex Bolt |
243331 |
4 |
Sheave |
415896 |
5 |
Square Key |
281582 |
6 |
Speed Nut |
254431 |
7 |
Flange Spiral Lock Nut |
253067 |
8 |
Anti-Scalp Center Hub Wheel |
484230 |
9 |
Bearing Tube |
942137 |
10 |
Carriage Bolt |
247310 |
11 |
Roller Lock Pin |
644512 |
12 |
Roller |
426122 |
13 |
Hex Bolt |
243365 |
14 |
Roller Mount Spacer |
902284 |
15 |
Whiz Nut |
253043 |
16 |
Hex Flange Whiz Bolt |
253192 |
17 |
Whiz Nut |
253035 |
18 |
M1 61 Deck Flap |
424204 |
19 |
Deflector Strap |
774337 |
20 |
Bolt |
253181 |
21 |
Whiz Nut |
253025 |
22 |
Belt |
382085 |
23 |
M1 52/61 Idler Arm |
824488 |
24 |
Pedestal Bearing |
121650 |
25 |
Cupped Washer |
257041 |
26 |
Washer |
257040 |
27 |
Washer |
257160 |
28 |
Idler |
393250 |
29 |
Hex Bolt |
243575 |
30 |
2 Piece Center Roller Assembly |
603725 |
31 |
Whiz Nut |
253058 |
32 |
GR 8 Hex Bolt |
243458 |
33 |
M1 5 Links Chain |
820331 |
34 |
right Belt Shield - Mid 61 |
722451 |
35 |
left Belt Shield - Mid 61 |
722452 |
36 |
Hex Whiz Bolt |
253175 |
37 |
Radius Arm Assembly |
604675 |
38 |
Rod End |
265665 |
39 |
Nut |
254493 |
40 |
Aux Front Shroud - M1/3461 |
724589 |
41 |
Bolt Whiz Truss |
253176 |
42 |
Nut |
254450 |
43 |
Idler Adjustment J Bolt |
730391 |
44 |
Extension Spring |
283848 |
45 |
Speeed Nut |
254448 |
46 |
Vac Housing Pivot Mount |
643632 |
47 |
Carriage Bolt |
247130 |
48 |
21" Medium Lift Blade |
320242 |
- |
21" Contour Blade |
320244 |
- |
21" High Lift Notch Blade |
320245 |
- |
21" Extreme Hi-Lift Blade |
320246 |
- |
21" Hi-Low Mulch |
320247 |
49 |
right Anti-Scalp Roller Mount |
645576 |
50 |
left Anti-Scalp Roller Mount |
645579 |
51 |
Nylon Bearing |
422520 |
52 |
3 Prong Head Deck Stud (Knob) |
252821 |
53 |
Oilite Bearing |
121756 |
54 |
Discharge Flex Shield Assembly |
604317 |
55 |
Discharge Flex Shield |
422042 |
56 |
Discharge Flex Shield Mount |
644570 |
57 |
Torsion Spring |
284406 |
58 |
Discharge Flex Shield Pin |
780650 |
59 |
Cotter Ring |
260608 |
60 |
Washer |
257062 |
61 |
M1 61 left Mulch Plate |
644610 |
62 |
M1 61 right Mulch Plate |
644611 |
63 |
Mulch End Cap |
644058 |
64 |
Hex Bolt |
243810 |
65 |
Lock Nut |
253970 |
66 |
Hex Bolt |
243335 |
- |
Washer |
257030 |
67 |
Carriage Bolt |
247135 |
78 |
Foot Rest Ext Tread |
420904 |
69 |
Idler Arm Stabilizer Cap |
423670 |
70 |
Shroud - Discharge Feflect |
729687 |
71 |
Bolt Whiz Truss |
253177 |
