Genuine OEM Grasshopper® Mower Parts Diagrams

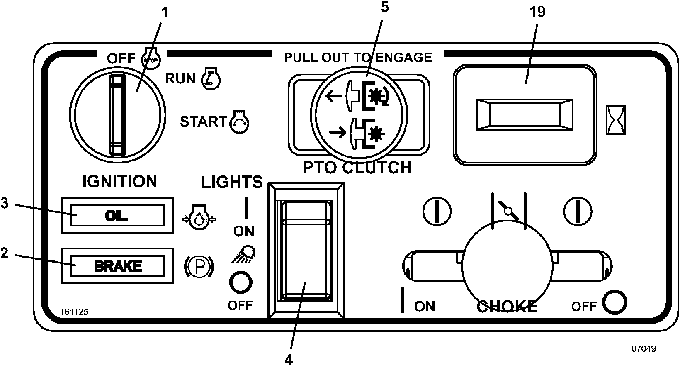

335B • Console
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Key Switch B & S/Kohler |
183806 |
- |
Key Ignition w/Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Rocker Switch |
184179 |
5 |
Push/Pull Switch |
183925 |
19 |
Snap-in Hour Meter |
141551 |
20 |
329B/335B Console Decal |
161125 |
