Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

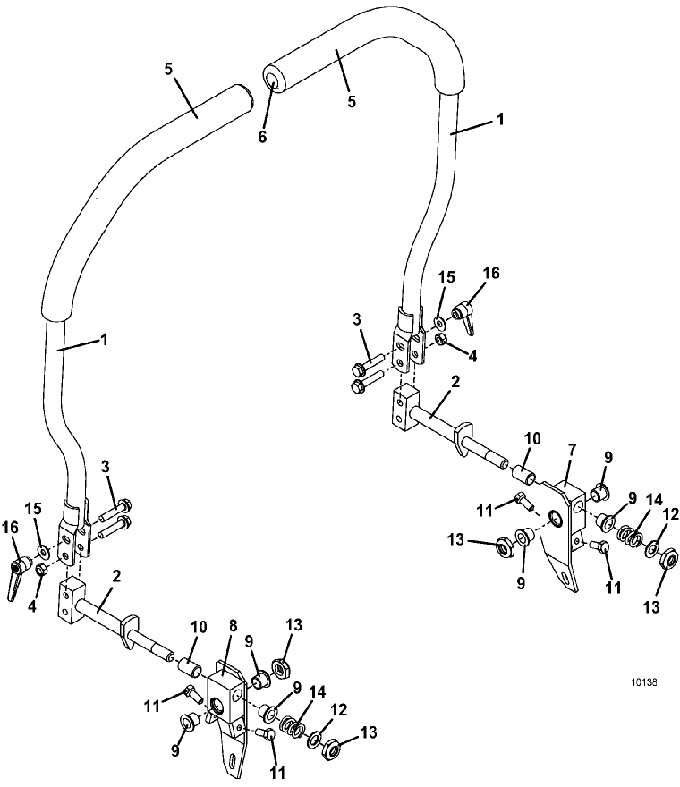

335B • Steering Assembly

2013

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Steering Lever Assembly - Wide STD

604778

2

Adjustable Steering Lever Mount

643926

3

Hex Flange Whiz Bolt

253195

4

Nylon Insert Nut

253450

5

Handle Grip

422179

6

Vinyl Cap .75 ID

422095

7

Right Steering Pivot with Stop & Bearings 200V

604713

8

Left Steering Pivot with Stop & Bearings 200V

604714

9

Sleeve Bearing with Flange

422556

10

Sleeve Bearing

422557

11

Hex Bolt

243197

12

Washer

257063

13

Nylon Insert Nut

253470

14

Compression Spring

283324

15

Flat Washer

257019

16

Adjustable Lever Nut .312-16

254438
