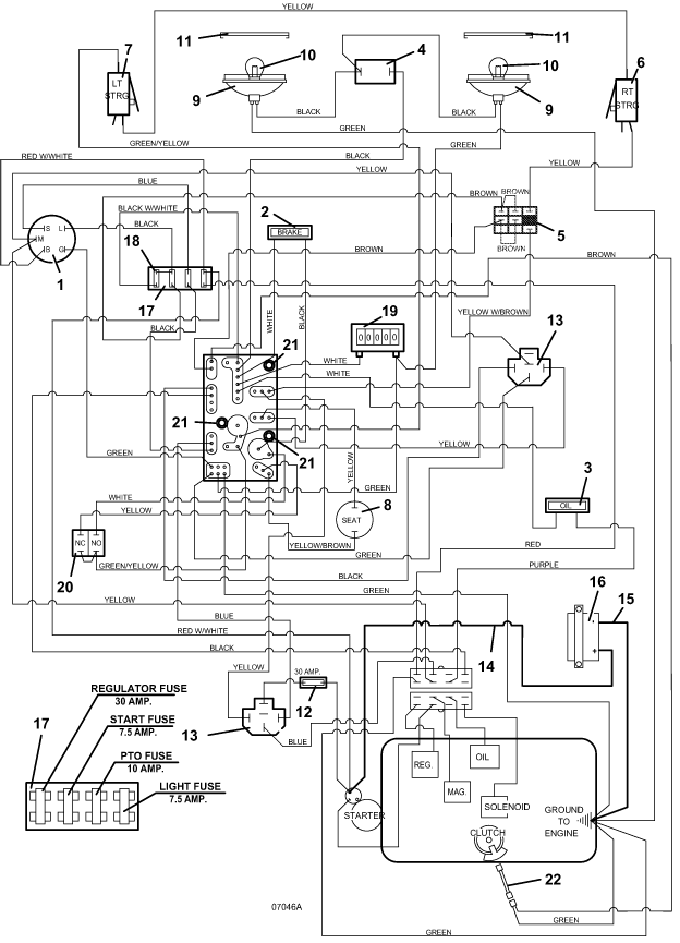

335B • Electrical Wiring
2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Key Switch B & S/Kohler |
183806 |
- |
Key Ignition w/Cover |
101101 |
- |
Nut |
254498 |
- |
Panel Plastic |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Rocker Switch |
184179 |
5 |
Push/Pull Switch |
183925 |
6 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
7 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
8 |
Twist-In Seat Switch |
183871 |
9 |
Flood Worklamp |
182253 |
10 |
Worklamp Light Bulb |
182005 |
11 |
Snap Mount Worklamp Bezel |
182251 |
12 |
In-Line Auto Fuse Holder |
181735 |
- |
Auto Fuse ATC - 30 |
181470 |
13 |
12 volt DC Relay w/MT |
184271 |
- |
6mm Type 1 Push-On |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
14 |
Battery Cable 42 inch Red |
180340 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
15 |
Battery Cable 39 inch Black |
180295 |
16 |
12 Volt Sidepost Wet Battery |
180130 |
- |
12 Volt Sidepost Dry Battery |
180131 |
- |
Hex Bolt |
243309 |
- |
Battery Hold Down Strap |
604785 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Wire Fuse Clip |
184472 |
18 |
Auto ATC 30 Amp Fuse |
181470 |
- |
Auto ATC 10 Amp Fuse |
181462 |
- |
Auto ATC 7.5 Amp Fuse |
181460 |
19 |
Snap-in Hour Meter |
141551 |
- |
Fuel Level Gauge - Console Mount |
141122 |
20 |
Brake Interlock Switch |
183894 |
21 |
PC Board Support Spacer |
423690 |
22 |
Clutch Pigtail -Modified |
604431 |
23 |
2 Terminal Connector |
184907 |
24 |
Wiring Assembly - 329B/335 |
605906 |
