Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

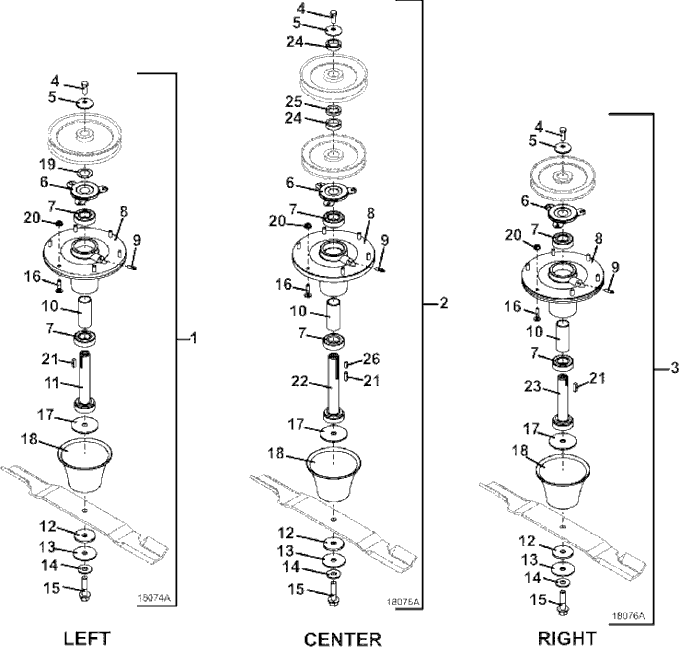

337G5 • Blade Spindle Assembly - 61 Inch

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blade Spindle Assembly

623738

2

Blade Spindle Assembly

623739

3

Blade Spindle Assembly

623763

4

Hex Bolt

243331

5

Cupped Washer

257041

6

Bearing Shield

721167

7

Ball Bearing

110081

8

Aluminum Spindle Housing Assembly

604413

9

Zerk Grease Fitting

280745

10

Deep Spindle Bearing Spacer

903643

11

Spindle Shaft Assembly

604774

12

Fiber Washer

421200

13

Washer

257061

14

Hardened Blade Spindle Washer

257057

15

Grade 8 Flange Hex Bolt

243583

16

Round Head Ribbed Neck Bolt

247141

17

Washer

257055

18

Deflector Cone

423680

19

Washer

257104

20

Whiz Nut

253035

21

Square Key

281582

22

Spindle Shaft Assembly

604773

23

Spindle Shaft Assembly

604775

24

Spacer

282615

25

Spacer

282607

26

Square Key

281576
