Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

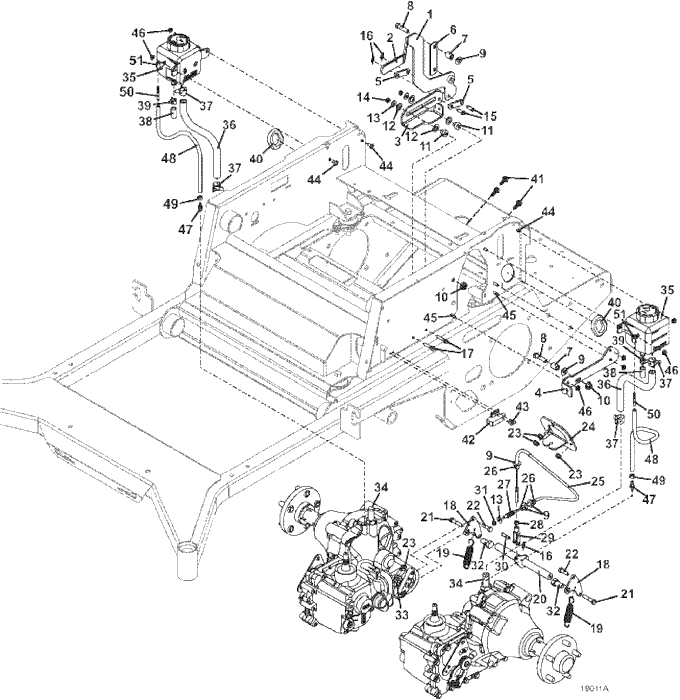

337G5 • Brake Assembly & Expansion Tanks

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Brake Lever

644469

2

Handle Grip

422150

3

Bracket

725656

4

Cable Mount Bracket

725655

5

Brake Link

775092

6

Reinforcement Pin

774145

7

Spacer

902283

8

Hex Bolt

243340

9

Washer

257030

10

Whiz Nut

253043

11

Brake Lever Spacer

881130

12

Washer

257063

13

Washer

257020

14

Nylon Insert Nut

253440

15

Clevis Pin

261279

16

Cotter Ring

260606

17

Hex Bolt

243030

18

Brake Arm

775017

19

Spring - Extension w/Swivel

283819

20

Brake Rod

645118

21

Hex Bolt

243215

22

Hex Bolt

243205

23

Whiz Nut

253035

24

Cable Mount

725593

25

Brake Cable Assembly

323601

26

Nut

254441

27

Compression Spring

283311

28

Nut

254434

29

Clevis Yoke

265530

30

Clevis Pin

261236

31

Nylon Insert Nut

253441

32

Hex Bolt

243560

33

Nylon Insert Nut

253470

34

Fitting

360083

35

Expansion Tank

421983

36

Hydraulic Hose

821811

37

Clamp - Hose - Spring

280266

38

Cap - Manifold Fitting

422102

39

Clamp - Hose - Spring

280263

40

Grommet

424290

41

Flange Whiz Hex Bolt

253192

42

Switch - Brake Interlock

183894

43

Machine Screw

250258

-

Nut

254421

44

Truss Whiz Bolt

253176

45

Truss Whiz Bolt

253177

46

Whiz Nut

253025

47

Adapter

360010

48

Hose - Vent Clear

821724

49

Spring Hose Clamp

280258

50

Plug

365501

51

Clamp - Loom .5

180605

Return to 337G5 Index Return to Top
