Genuine OEM Grasshopper® Mower Parts Diagrams

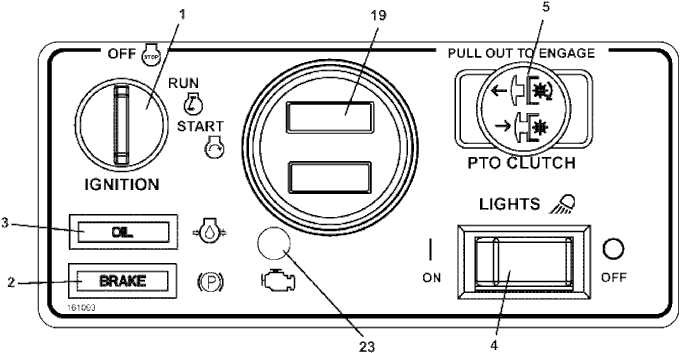

337G5 • Console Diagram
2020
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
B&S/Kohler Key Switch |
183806 |
- |
Indak Key Ignition w/Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Light Indicator |
182326 |
3 |
Oil Indicator Light |
182327 |
4 |
Rocker Switch |
184179 |
5 |
Push/Pull Switch |
183925 |
19 |
Console Mount - Fuel Level Gauge |
141122 |
23 |
MIL Light Indicator |
182322 |
24 |
Console Decal |
161093 |
