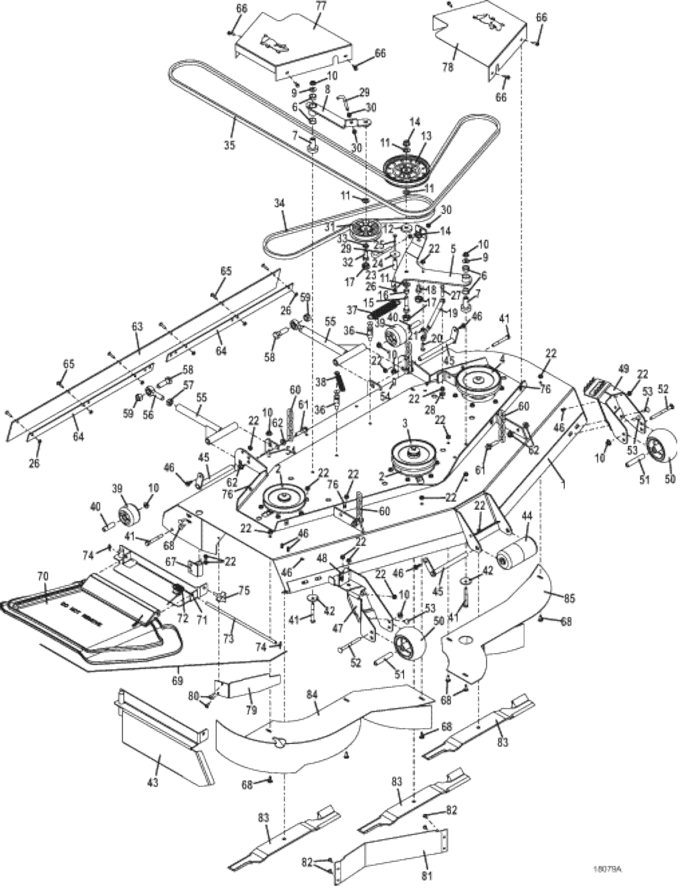

1

Deck Weldment

644160

2

Sheave

415892

3

Sheave

415906

4

Sheave

415896

5

Idler Arm Assembly - 61/72" Deck

824424

6

Oilite Bearing

121756

7

Pedestal Bearing

121650

8

Right Idler Arm Assembly

824422

9

Washer

257040

10

Whiz Nut

253043

11

Washer

257062

12

Washer

257160

13

Idler

393250

14

Flange Spiral Loc Nut

253067

15

Hex Bolt

243585

16

Actuator Stop Spacer

902282

17

Stabilizer Cap - Idler Arm

423670

18

Hex Bolt

243551

19

Damper

285040

20

Hex Bolt

243205

21

Washer

257032

22

Whiz Nut

253035

23

Guide Tube

784051

24

Washer

257024

25

Hex Bolt

243045

26

Whiz Nut

253025

27

Hex Bolt

243215

28

Washer

257030

29

"J" Bolt - Idler Adjustment

730391

30

Nut

254450

31

Idler

393226

32

Hex Bolt

243565

33

Lock Washer

257432

34

Belt

382836

35

Belt

382095

36

Deck Spring Anchor

881926

37

Extension Spring

283848

38

Extension Spring w/Swivel

283820

39

Roller

426122

40

Roller Mount Spacer

902284

41

Hex Bolt

243365

42

Cupped Washer

257041

43

Mulch End Cap

644058

44

Center Roller - 2 Piece Assembly

603725

45

Lock Pin - Roller

644512

46

Flange Whiz Hex Bolt

253192

47

Right Anti-Scalp Roller Mount

645576

48

Speed Nut

254448

49

Left Anti-Scalp Roller Mount

645589

50

Wheel - Anti-Scalp Center Hub

484230

51

Bearing Tube

942137

52

Carriage Bolt

247310

53

Carriage Bolt

247135

54

Hex Bolt

243335

55

Radius Arm Assembly

604667

56

Rod End

265665

57

Nut

254493

58

Hex Bolt

243810

59

Lock Nut

253970

60

M1 5 Links Chain

820331

61

Grade 8 Hex Bolt

243458

62

Whiz Nut

253058

63

Deck Flap

424204

64

Deflector Strap

774337

65

Bolt

253181

66

Hex Whiz Bolt

253175

67

Pivot Vac Housing Mount

643632

68

Carriage Bolt

247130

69

Flex Discharge Shield Assembly

604317

70

Flex Discharge Shield

422042

71

Discharge Shield Mount

644570

72

Torsion Spring

284406

73

Pin - Flex Discharge Shield

780650

74

Cotter Ring

260608

75

3 Prong HD Deck Stud

252821

76

Speed Nut

254431

77

61 Right Mid Belt Shield

722451

-

SM Grasshopper Emblem Decal

163289

78

61 Left Mid Belt Shield

722452

-

SM Grasshopper Emblem Decal

163289

79

Discharge Deflect Shroud

729687

80

Truss Whiz Bolt

253177

81

Auxiliary Front Shroud

724589

82

Truss Whiz Bolt

253176

83

21" High Lift Notch Blade

320245

-

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" Extreme Hi-Lift Blade

320246

-

21" Hi-Low Mulching Blade

320247

84

61" Left Mulch Plate

644610

85

61" Right Mulch Plate

644611
