Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

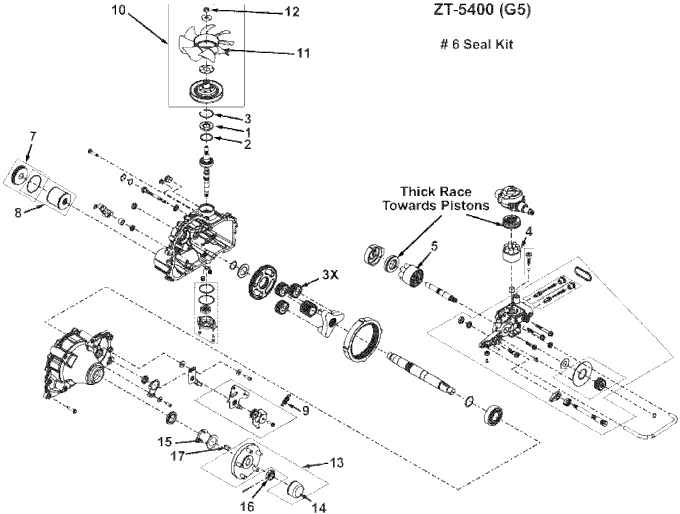

337G5 • G5 Drive Breakdown

2020

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Seal

125372

2

Seal Spacer

130091

3

Retaining Ring

130092

4

Block Kit

130152

5

Adapter - Expansion Tank T2

130510

6

Seal Kit

130201

7

Filter Plug Kit

130204

8

Filter Kit

130206

9

Return Spring

130224

10

Pulley/Fan Kit

130231

11

Fan

130238

12

Jam Nut

130235

13

Hub Kit

130291

14

Axle Cap

130292

15

Axle Sleeve

130293

16

Castle Nut

254523

17

Woodruff Key

281860
