Genuine OEM Grasshopper® Mower Parts Diagrams

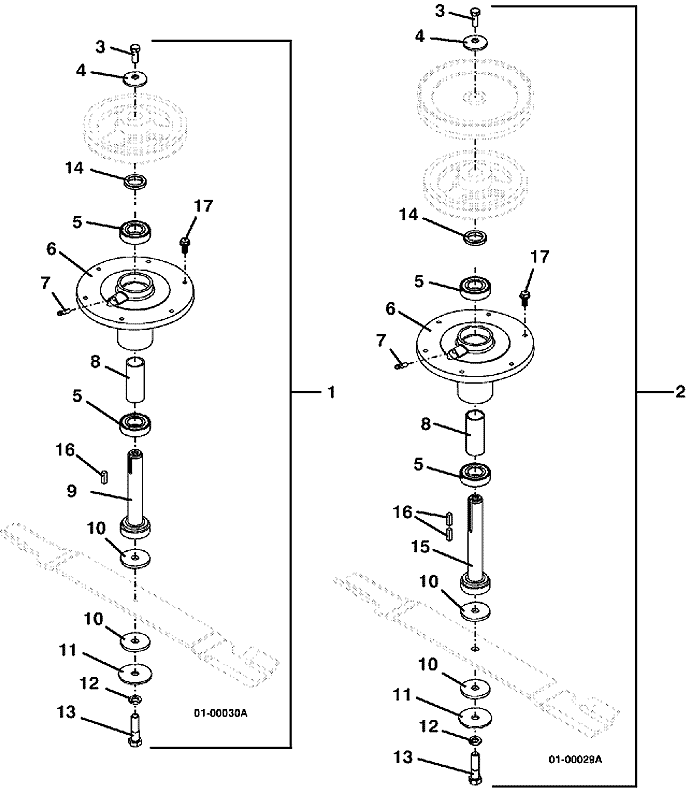

428D • Blade Spindle Assembly M172
2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M1 Blade Spindle Assembly, left & right (includes items 3-14) |
623786 |
2 |
M1 Blade Spindle Assembly, center (includes items 3-8 & 10-15) |
623787 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Single Seal Ball Bearing |
110082 |
6 |
Machined Deep Spindle Housing |
824150 |
7 |
Grease Fitting (Zerk) |
280745 |
8 |
Deep Spindle Bearing Spacer |
903643 |
9 |
98S Spindle Shaft Assembly |
604774 |
10 |
Fiber Washer |
421200 |
11 |
Washer |
257061 |
12 |
Lock Washer |
257432 |
13 |
Hex Bolt |
243581 |
14 |
Spacer |
282615 |
15 |
M1 Spindle Shaft Assembly |
604773 |
16 |
Square Key |
281582 |
17 |
Hex Flange Whiz Bolt |
253192 |
