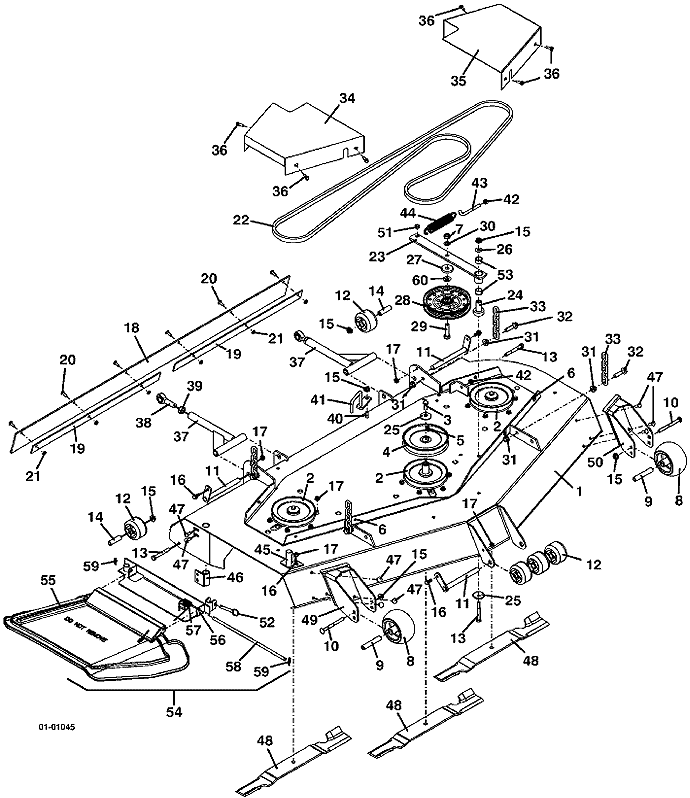

1

Deck Weldment- M172/07

644161

2

Sheave

414745

3

Hex Bolt .375-24 x 1

243331

4

Sheave

831536

5

Square Key

281582

6

Hex Flange Whiz Bolt

253192

7

Nut

254470

8

Anti-Scalp Offset Hub Wheel

484225

9

Washer

257062

10

Hex Bolt

243620

11

Roller Lock Pin

644512

12

Roller

426122

13

Hex Bolt

243365

14

Hex Whiz Bolt

253175

15

Whiz Nut

253043

16

Hitch Pin

260400

17

Whiz Nut

253035

18

M1 72 Deck Flap

424206

19

Deflector Strap M1 72

774223

20

Truss Whiz Bolt

253177

21

Whiz Nut

253025

22

Belt

382098

23

M1 72 Idler Arm Assembly

824494

24

Pedestal Bearing

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer

883804

28

Idler

393250

29

Hex Bolt

243580

30

Lock Washer

257432

31

Whiz Nut

253058

32

Hex Bolt GR 8

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield M1 72

723330

35

left Belt Shield M1 72

723331

36

Roller Mount M1 72

755071

37

Radius Arm Assembly - 328 F/A

604673

38

Rod End

265665

39

Nut

254493

40

Flange Whiz Bolt

253203

41

M1 Deck Belt Guide

644086

42

Nut

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Clevis Shaft

643235

46

Pivot Mount

643632

47

Carriage Bolt

247130

48

Medium Lift Blade - 25"

320250

-

Contour Blade - 25"

320252

-

High Lift Notch Blade - 25"

320253

-

Extreme High Lift Blade - 25"

320254

49

Ant-Scalp Roller Mount - right

643842

50

Anti-Scalp Roller Mount - left

643695

51

Speed Nut

254431

52

Carriage Bolt

247253

53

Nylon Bearing

422520

54

Oilite Bearing

121756

55

Anti-Scalp Center Hub Wheel

484230

56

Bearing Tube

942137

57

Carriage Bolt

247310

58

Flex Discharge Shield Assembly

604749

59

Flex Discharge Shield

422042

60

Flex Discharge Shield Mount

644767

61

Torsion Spring

284406

62

Flex Discharge Shield Pin

780650

63

Cotter Ring

260608
