Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

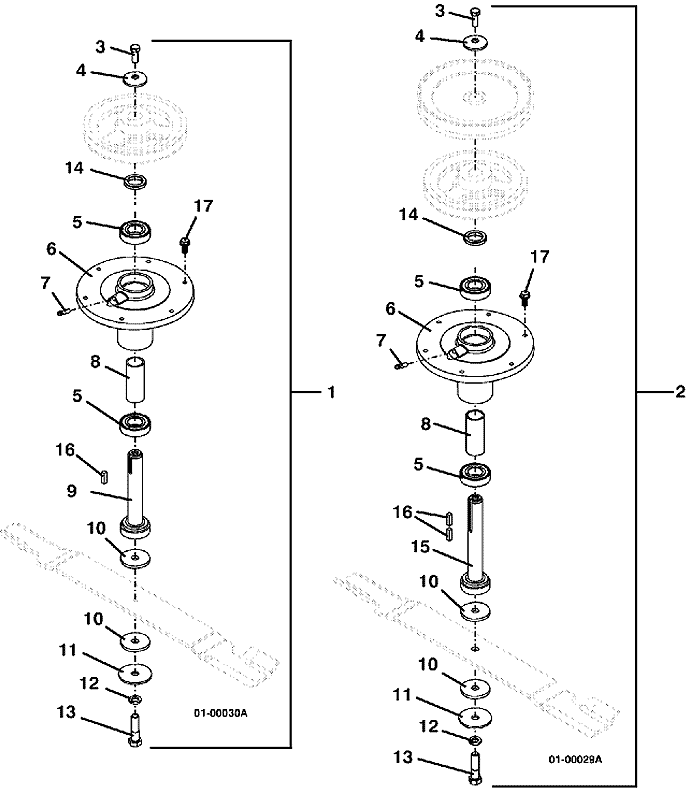

428D • Blade Spindle Assembly M172

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Blade Spindle Assembly, left & right (includes items 3-14)

623786

2

M1 Blade Spindle Assembly, center (includes items 3-8 & 10-15)

623787

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Single Seal Ball Bearing

110082

6

Machined Deep Spindle Housing

824150

7

Grease Fitting (Zerk)

280745

8

Deep Spindle Bearing Spacer

903643

9

98S Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Hex Bolt

243581

14

Spacer

282615

15

M1 Spindle Shaft Assembly

604773

16

Square Key

281582

17

Hex Flange Whiz Bolt

253192
