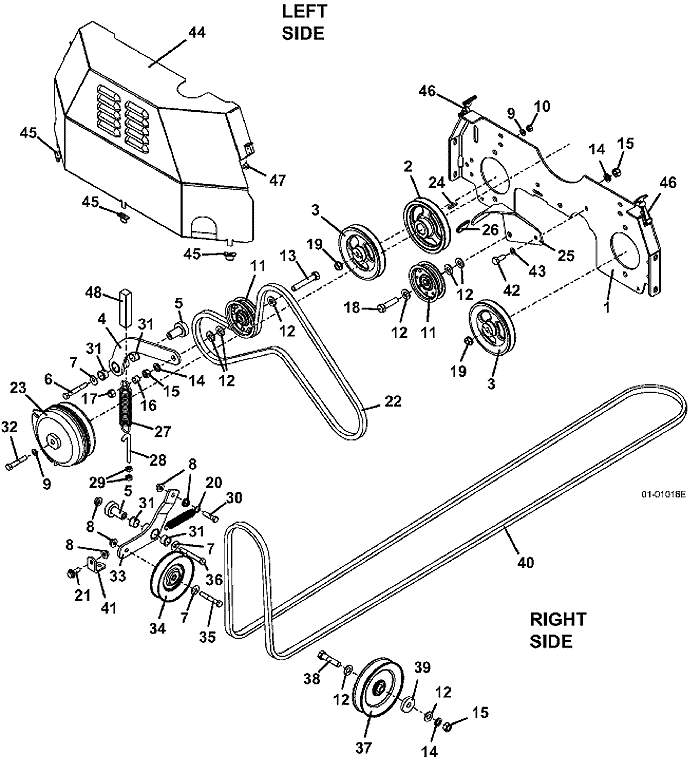

Genuine OEM Grasshopper® Mower Parts Diagrams

428D • Drive Assembly

2003

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate - 325 / 400

644633

2

Sheave

415884

3

Sheave

415898

4

Idler Arm

824484

5

Pedestal Bearing

121650

6

Hex Bolt

243360

7

Washer

257040

8

Whiz Nut

253043

9

Lock Washer

257412

10

Lock Nut .375-16

253890

11

Idler Pulley

393195

12

Washer

257062

13

Hex Bolt

243601

14

Lock Washer

257432

15

Nut

254470

16

Nylon Bearing

422558

17

Lock Nut

253930

18

Hex Bolt

243580

19

Flanged Nut with Counter Bore

830351

20

Extension Spring with Swivel

283820

21

Flange Whiz Bolt

253203

22

Belt

382035

23

Electric Clutch

388740

24

Square Key

281582

25

Anti Rotation Bracket

755046

26

Clutch Bracket Cover

422088

27

Spring Assembly

604776

28

Idler Adjustment J Bolt

730391

29

Nut

254450

30

Hex Bolt

243340

31

Oilite Bearing

121756

32

Hex Bolt

243349

33

Mule Drive Idler Arm Assembly

824486

34

Idler

393376

35

Hex Bolt

243355

36

Hex Bolt

243365

37

Idler

393390

38

Hex Bolt

243585

39

Retainer Washer

883804

40

Belt

382097

-

Belt

382099

41

M1 Idler Spring Bracket

732520

42

Hex Bolt

271120

43

Lock Washer

275580

44

M1 428D Rear Shield Assembly

604756

45

Rear Belt Shield Isolator

422090

46

Rubber Draw Latch

281301

47

Rubber Bumper

424015

48

Idler Spring Damper

425650
