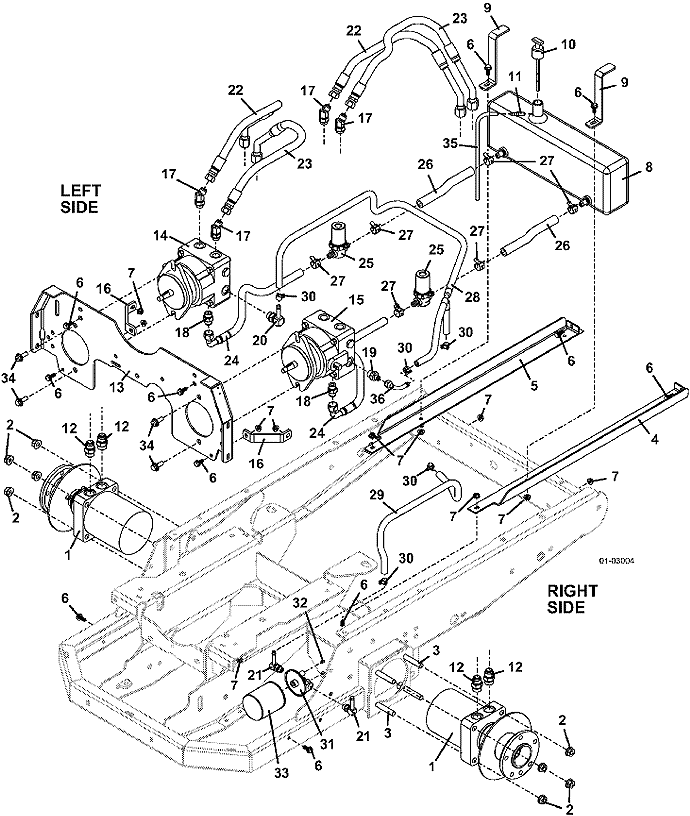

Genuine OEM Grasshopper® Mower Parts Diagrams

428D • Reservoir and Hose Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603604

2

Whiz Nut

253066

3

Socket Head Screw

259640

4

400 right Tank Rail

754092

5

400 left Tank Rail

754093

6

Hex Flange Whiz Bolt

253192

7

Whiz Nut

253035

8

M1 325/400 Oil Reservoir Assembly

603606

-

Grommet

101875

-

Grommet

101880

-

Straight Fitting

360058

-

90 degree Fitting

363638

9

Oil Tank Strap

732557

10

M1 Oil Reservoir Dipstick

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360069

-

O Ring

126537

-

O Ring

126529

13

325/400 Pump Plate

644633

14

left Hydro Pump

391452

15

right Hydro Pump

391453

16

Pump Plate Rein Strap

732882

17

Adapter Fitting

360046

-

O Ring

126527

-

O Ring

126535

18

Steel O Ring Boss Fitting

363832

19

O-Ring Flare Adapter Fitting

360080

20

Adapter

360062

21

Adapter

360056

22

Hose Assembly

424375

23

Hose Assembly

424377

24

Hose Assembly

424321

25

In-Line Strainer

366553

26

Hydraulic Hose

821796

27

Spring Hose Clamp

280265

28

Hose Assembly

424315

29

Hydraulic Hose

821787

30

Spring Hose Clamp

280263

31

M1 Series Filter Base

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Hex Bolt

243570

35

Clear Vent Hose

821724

36

Fitting

363846
