Genuine OEM Grasshopper® Mower Parts Diagrams

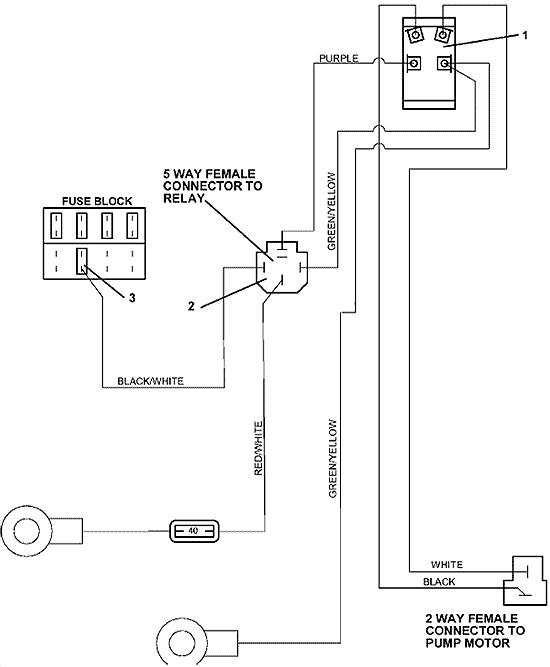

430D • Cutting Height Switch - Wiring
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Toggle Switch |
184084 |
- |
Toggle Switch Boot |
425200 |
- |
Keyed Washer |
770005 |
2 |
12 volt DC Relay with Mount |
184271 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
3 |
7.5 amp Auto ATC Fuse |
181460 |
4 |
400 Hydraulic Height Adjustment Wiring Assembly |
605952 |
