430D • Drive Assembly - diagram 2

2011

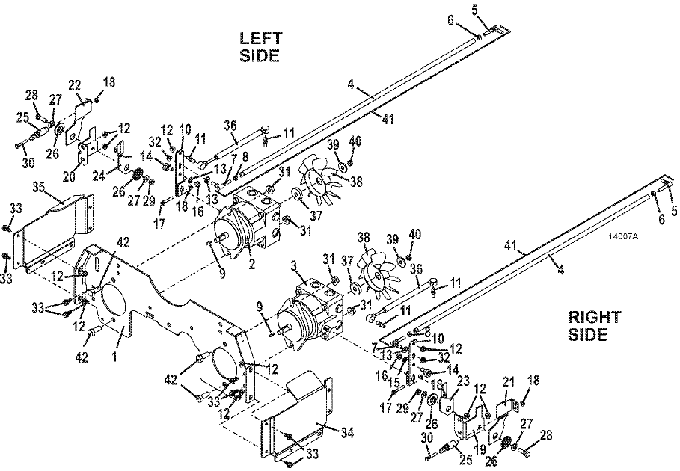

Drive Assembly 2

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

325/400 Pump Plate

644633

2

left Hydro Pump

391452

3

right Hydro Pump

391453

4

400S Steering Linkage Tube

784095

5

Right Male Ball Joint

265617

6

Nut

254441

7

Left Male Ball Joint

265618

8

Nut

254444

9

Rectangle Key

281562

10

Control Arm

725338

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

External Star Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Whiz Nut

253025

19

21L right Neutral Return Mount

729225

20

21L left Neutral Return Mount

729229

21

right Neutral Return Front Arm

729136

22

left Neutral Return Front Arm

729137

23

right Neutral Return Arm

729138

24

left Neutral Return Arm

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Hex Bolt

243035

31

Whiz Nut

253066

32

Whiz Nut

253038

33

Hex Flange Whiz Bolt

253192

34

400 Series right Rein Plate

754155

35

400 Series left Rein Plate

754156

36

Damper

285031

37

Fan Mount Hub

417200

38

7" Clockwise Nylon Fan

320857

39

Washer

774020

40

Nut

254452

41

400s Steering Linkage Kit

606526

42

Hex Bolt

243565

Return to 430D Index Return to Top
