Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

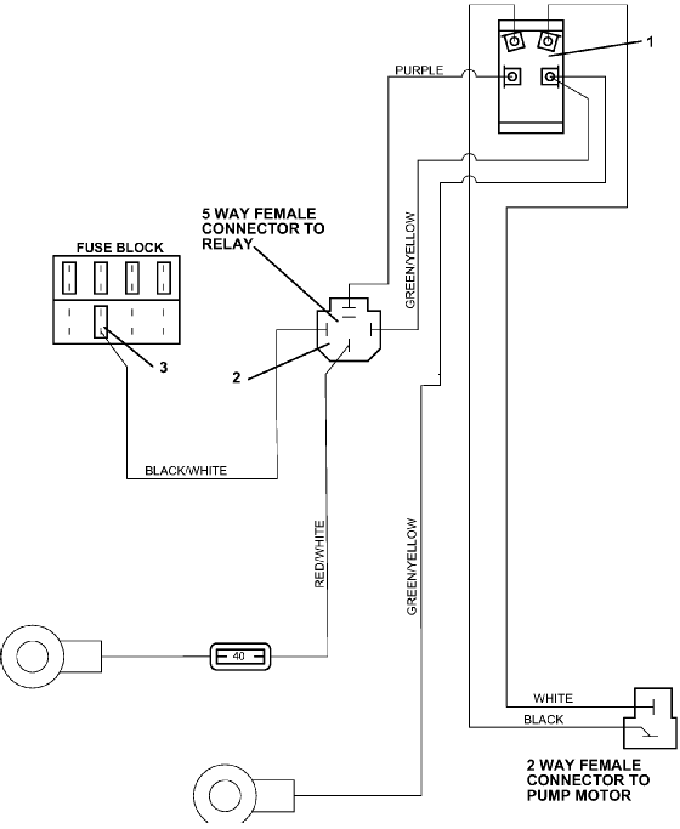

430D • Cutting Height Switch - Wiring

2012

Cutting Height Switch

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Toggle Switch

184084

-

Toggle Switch Boot

425200

-

Keyed Washer

770005

2

12 volt DC Relay with Mount

184271

-

Type 1 6mm Push-On

184570

-

.250 Faston Terminal

184581

-

5-Way Female Connector

184926

3

7.5 amp Auto ATC Fuse

181460

4

400 Hydraulic Height Adjustment Wiring Assembly

605952

Return to 430D Index Return to Top
