Genuine OEM Grasshopper® Mower Parts Diagrams

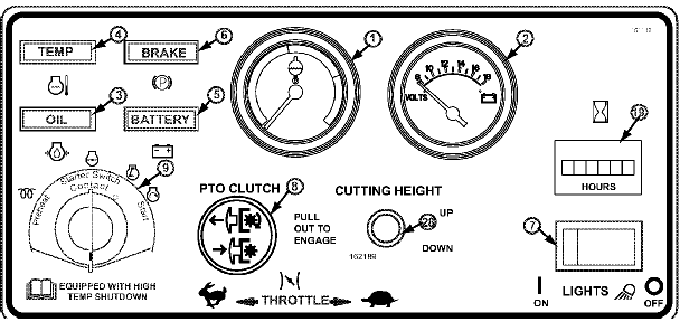

430D • Console
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Zoned Electric Temperature Gauge |
141165 |
2 |
Voltmeter Gauge |
141203 |
- |
Light Bulb-OBSOLETE |
182007 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push / Pull Switch |
183925 |
9 |
Sealed Key Switch - Kubota |
183827 |
- |
Double Notch Ignition Key - Kubota |
101106 |
19 |
Snap-in Hour Meter |
141551 |
28 |
Toggle Switch |
184084 |
29 |
Cutting Height Decal |
162189 |
30 |
Console Decal |
161116 |
